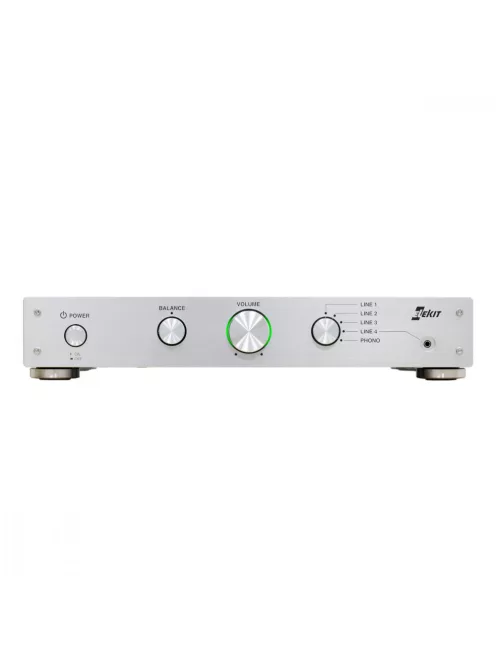

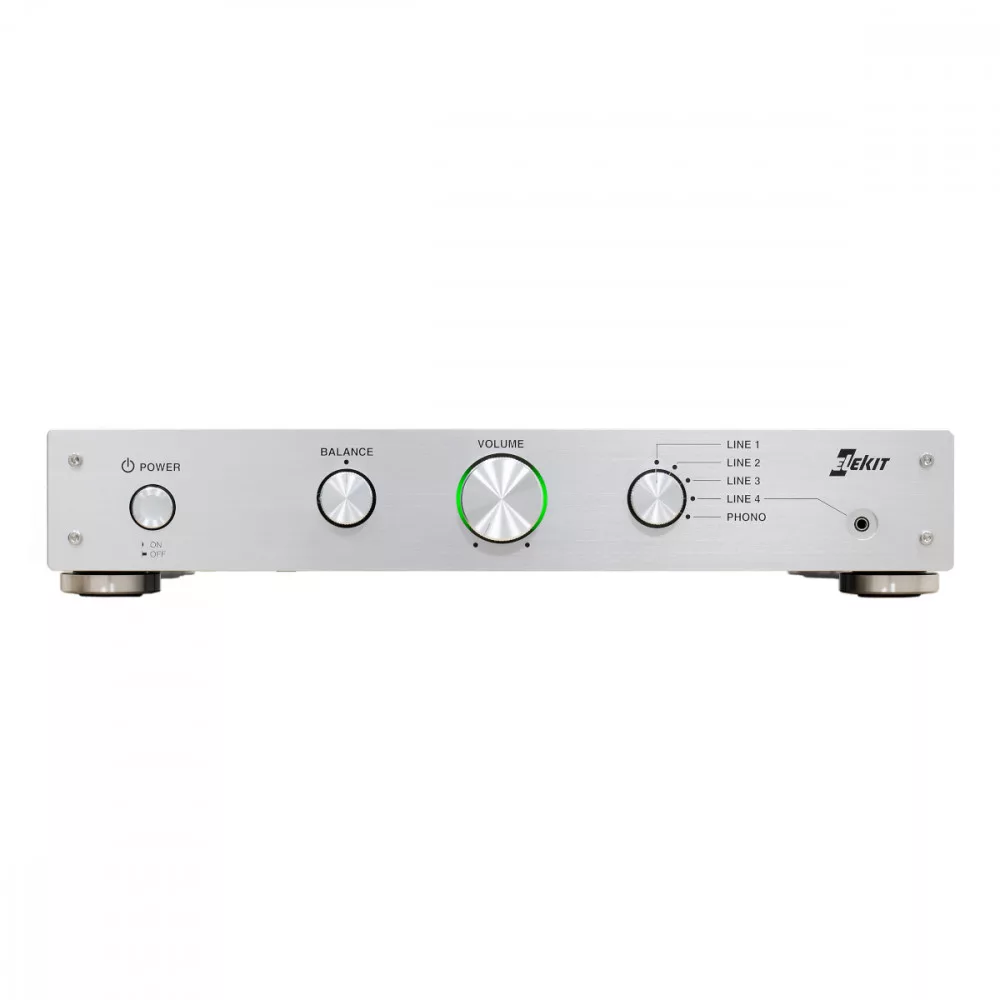

Newest addition to Elekit family – preamplifier kit with phono amp, in chassis with size matching to TU-8900 amp. Among other, it features a CR type RIAA equalizer circuit for straight-forward and smooth sound quality, quadral volume pot, four input lines and two outputs. And as usual, highest sound quality provided with six tubes.
- Quadral volume for the flat amp diminishes residual noise upon low volume
- Thorough elimination of hum noise
- REC-OUT built-in
TECHNICAL SPECIFICATION
| STOCK TUBES |
JJ Electronics ECC82 (12AU7) x 2 pcs. JJ Electronics ECC83 (12AX7) x 4 pcs. |

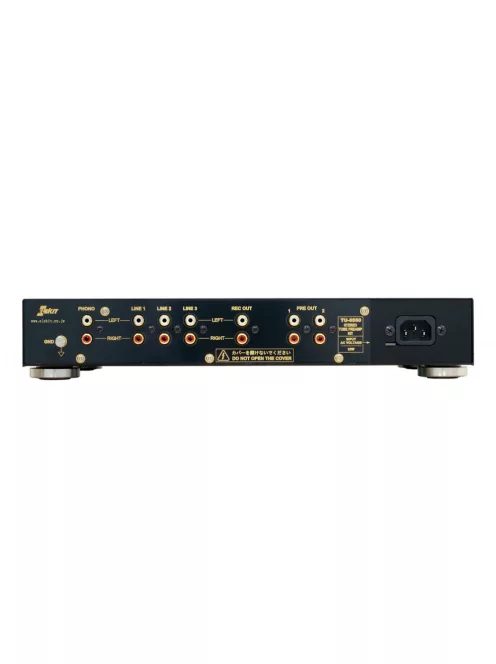

| INPUT TERMINALS |
RCA Jack 4 lines (LINE1 – 3 + PHONO) 3,5 mm stereo jack 1 line at front |
| OUTPUT TERMINALS |
RCA Jack 2 lines (parallel outpu) REC OUT RCA Jack 1 line |
| POWER VOLTAGE |
AC 100V 50/60Hz, IEC Standard inlet Selected from 100V, 115V, 200V and 230V upon assembly |
| POWER CONSUMPTION |
23 W |
| DIMENSIONS |
W 352 mm x H 66 mm x D 298 mm (exc. projections) |
| WEIGHT |
Approx. 3,9 kg (assembled, exc. power cord) |
| LINE AMP STAGE |
| – MAX. OUTPUT VOLTAGE |
20 V RMS (1 kHz) |
| – MAX GAIN |
Approx. 17 dB (~7 times) |
| – FREQUENCY RESPONSE (-3 dB) |
5 Hz – 200 kHz (-3 dB) |
| – S/N RATIO (IHF-A) |
130 dB (sound level mid) 126 dB (sound level max) |
| – RESIDUAL NOISE (IHF-A) |
15 μV (sound level max) 6,5 μV (sound level mid) |
| EQUALIZER AMP STAGE |
| – RIAA EQUALIZATION |
+/- 0,5 dB tolerance (20 Hz – 20 kHz) |
| – CARTRIDGE |
MM cartridge |
| – GAIN (1 kHz) |
29 dB |
| – SN RATIO (IHF-A) |
112 dB |
| – INPUT RESISTANCE |
47 kΩ (MM cartridge) |
| – MAX. OUTPUT VOLTAGE |
20 V RMS (1 kHz) |
