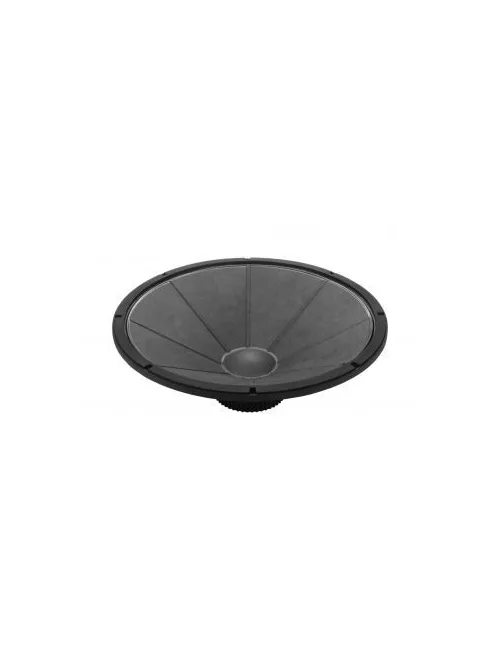

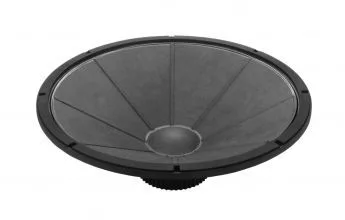

Fostex FW800HS Cone Woofer 31,5", 8 Ohm

Die FW-Serie (Fostex Woofer Serie) bietet Lautsprechergrößen von 10cm (4") bis zu sagenhaften 80cm (31,5"). Features und technische Daten Lautsprecher FW800HS is the large diameter super woofer for the ultra low frequency reproduction. Highly durable diaphragm & cap High input 4-layers voice coil Large aluminum die-cast heat sink Push-pull double spider FW800HS’s acoustic parameter is tuned can be worked with the smaller enclosure - 500 liter. Technische Daten Size: 800mm/31,5in Voice Coil Diameter: 99,2mm/3,90in Cast/Stamped: Cast Impedance: 8Ω Reproduction Frequency Response: fs - 1,5kHz Sound Pressure Level: 96dB/W(m) Rated Input: 150W Music Power: 450W Magnet Material: Ferrite Magnet Weight: 2,010g/4,431lb Net Weight: 21,000g/46,29lb a: 357,5mm D: 715mm Sd: 0,4015m2 Zn: 8Ω Fs: 25Hz Re: 6,6Ω Le: 0,163mH Qms: 19,22 Qes: 0,71 Qts: 0,69 Mms: 629g BL: 30,25 Telsa/m Vas: 1.473l Xmax: 2,3mm Eff/η0: 2,87% Cms: 0,0644mm/N EBP: 35,211
