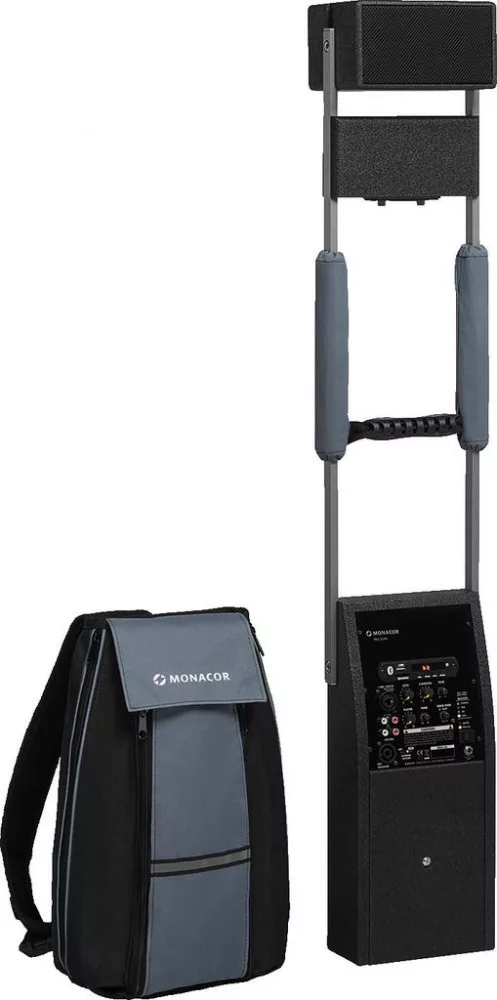

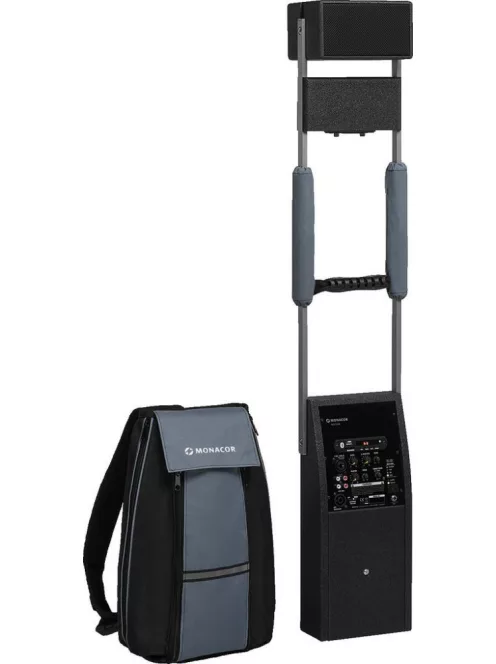

Portable amplifier system,
for processions and other mobile applications.
- Very comfortable to wear and great mobility due to backpack method
- 1 speaker with 4 speaker chassis
- Class D power amplifier
- Integrated 2-channel multifrequency wireless receiver (TXA-1822MR)
- Bluetooth receiver for wireless connection of mobile audio devices
- Adjustable USB/SD card player with connection for external storage media
- Built-in rechargeable lead gel battery 12 V/7.2 Ah (operating time: up to 7 hours)
- Compartment for spare rechargeable battery to extend operating time
- Integrated automatic battery charging
- Charging socket for supplied charger

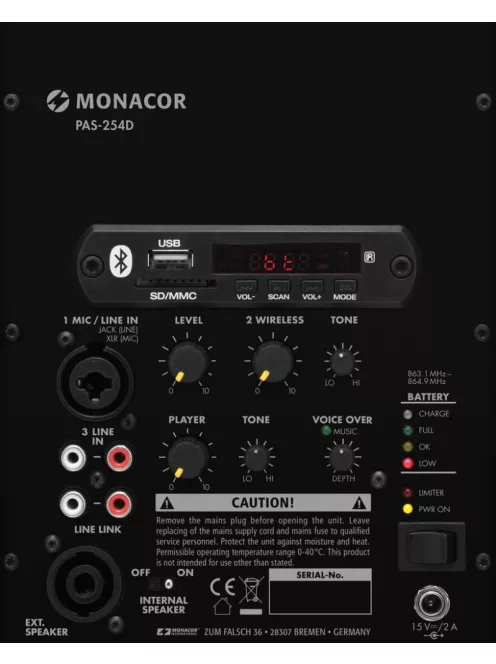

- 1 input via comb. jack mic (XLR)/line (6.3 mm), gain control, tone control, mic input with 12 V phantom power
- 1 stereo line input via RCA jacks, gain control, tone control
- MIX OUT output (RCA)
- Output for a speaker (min. impedance: 4 Ω), either additionally or alternatively to existing speakers
- Adjustable voice over function
- Limiter function
- Nylon backpack with storage pockets
Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HT and TXA-800HSE.
Licence-free in the EU.
Névleges teljesítmény: 70 W
Max. teljesítmény: 80 W
Átviteli tartomány: 80-20.000 Hz
Vivőfrekvencia: 863,1-864,9 MHz
Hatótávolság: ≈ 100 m
Érzékenységek:
Linkbemenet: 300 mV
Teljes harmonikus torzítás: -
Maximális hangnyomás: -
Mélyhangszínszabályzás: -
Középhangszín-szabályzás: -
Magashangszín-szabályzás: -
Táp:
Megengedett körny. hőm.: 0-40 °C
Méretek:
Tömeg: 7,7 kg
Csatlakozások:
