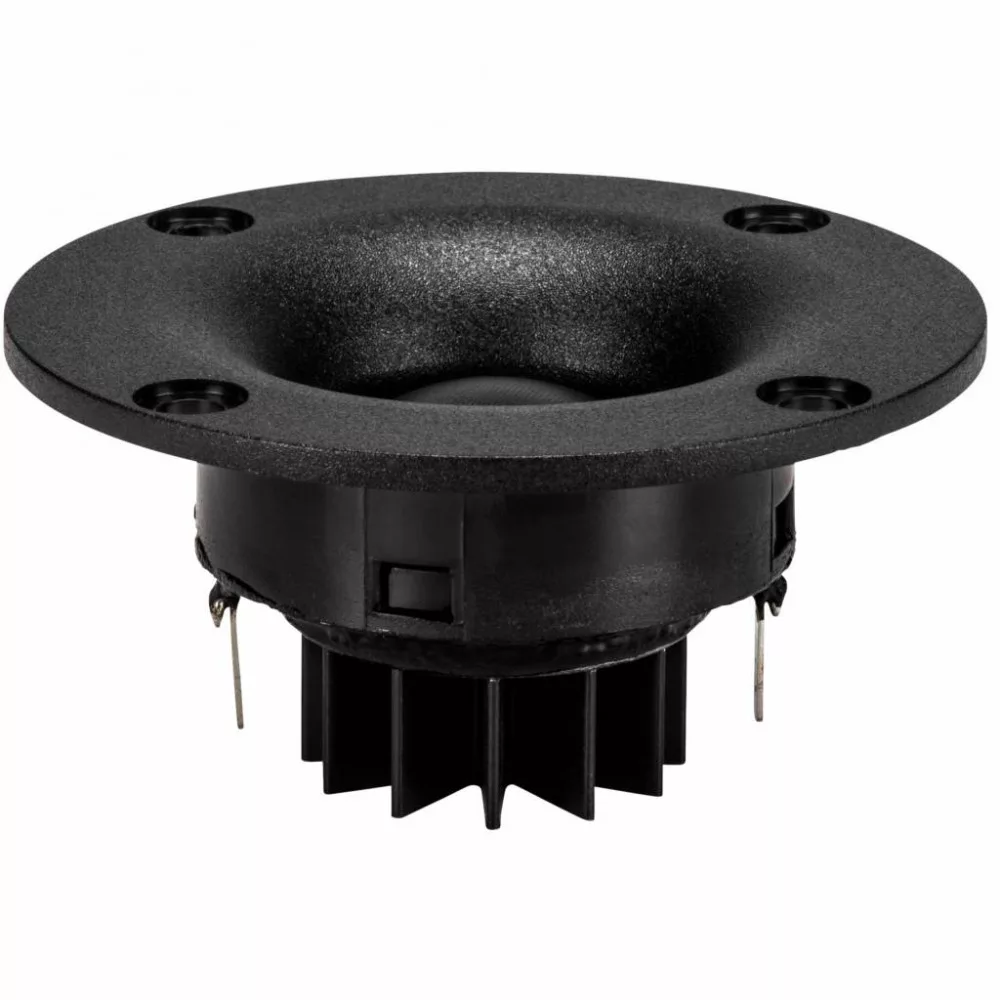

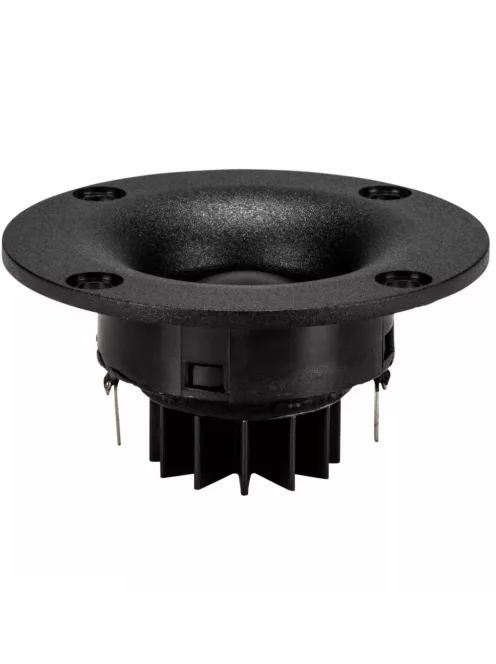

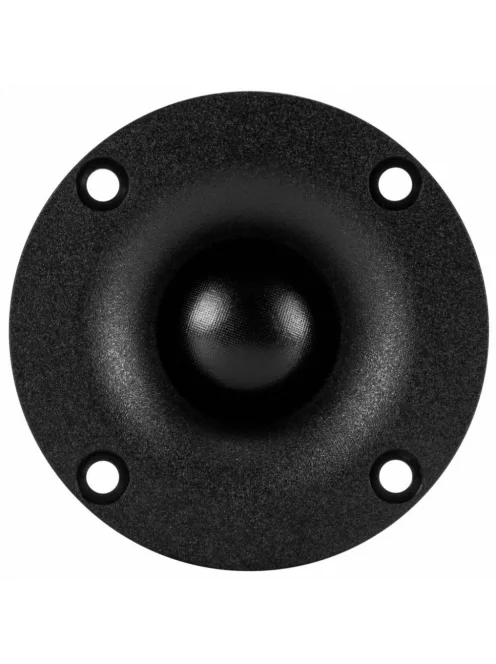

Tweeter Type: Soft Dome
Tweeter Series: BC Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 98.8 dB 1W/1m

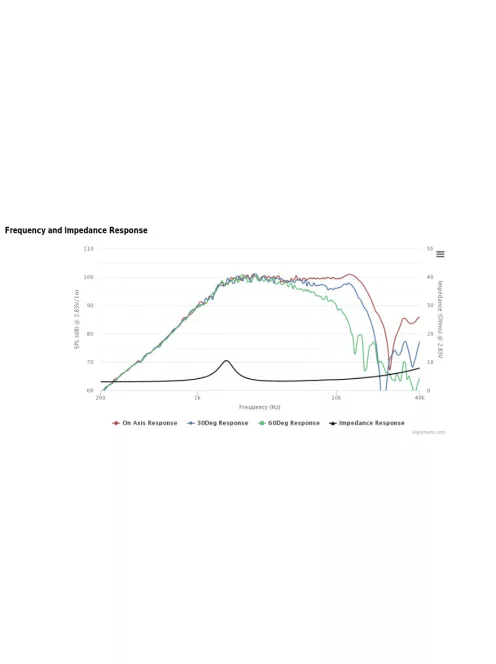

Frequency Response: 2500 to 18,000 Hz
Resonant Frequency (Fs): 1,660 Hz
DC Resistance (Re): 2.8 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 4.9
Electromagnetic Q (Qes): 1.53
