Tweeter Type: Soft Dome
Tweeter Series: BC Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 50 Watts
Impedance (Z): 4 ohms
Sensitivity: 4 ohms

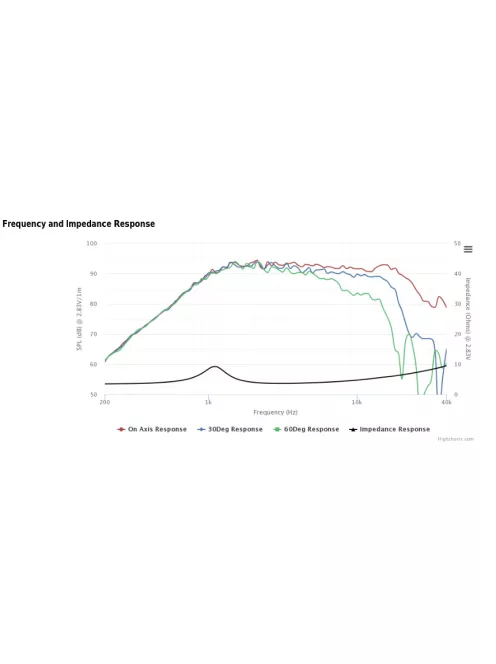

Frequency Response: 2200 to 28,000 Hz
Resonant Frequency (Fs): 1,130 Hz
DC Resistance (Re): 3.1 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 1.59
Electromagnetic Q (Qes): 1.06
Total Q (Qts): 0.64
