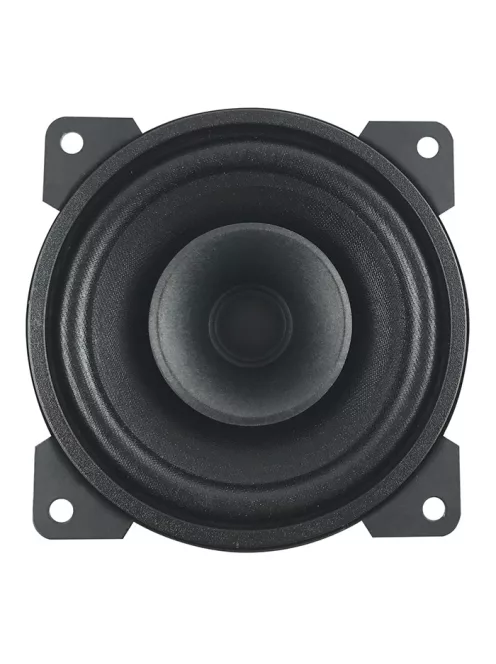

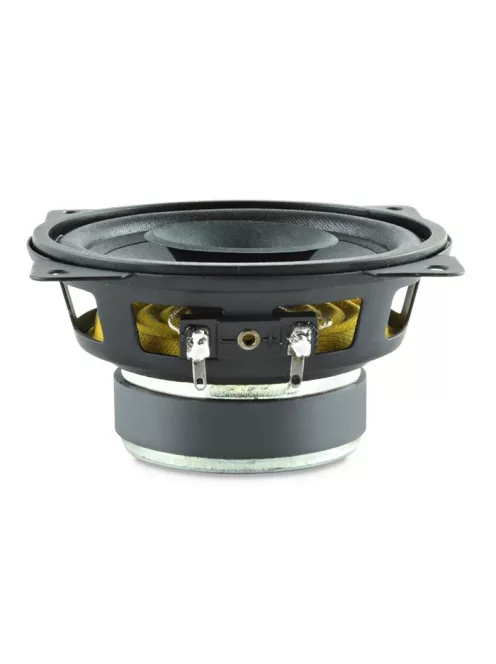

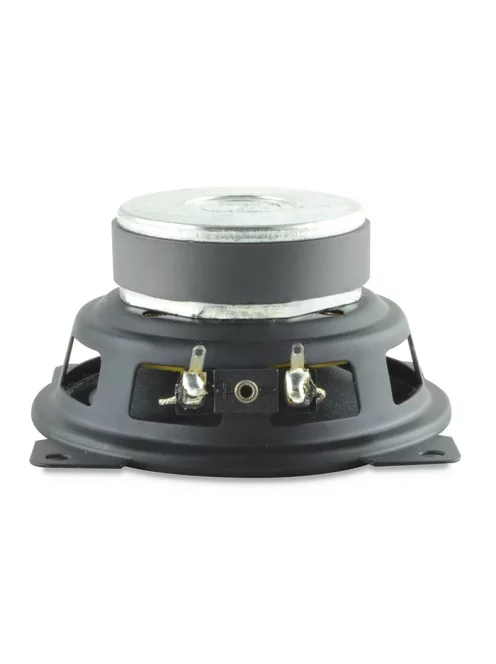

SICA 4 D 0,8 CS Szélessávú

Name: SICA 4 D 0,8 CS Szélessávú
Brand: Sica
SKU: SIC-Z001300C
Price: 25.97 EUR
Availability: InStock

4" | 70 W

Mehr

Hersteller

Sica

Mehr Details

Auf Lager

25,97 €

Beschreibung

4 D 0,8 CS	Z001300
HIGHLIGHTS
Dual Cone
Nominal overall diameter	4"
Nominal voice coil diameter	20 mm
Magnet material	Ferrite
Basket material	Pressed Sheet Steel
Power	70 W
Sensitivity	87.5 dB

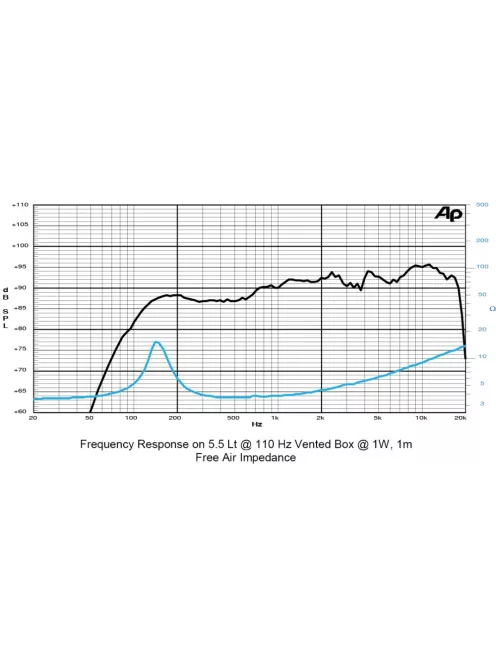

Frequency range	140-20000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter	4 in / 100 mm
Nominal Impedence	4 Ω
Rated Power AES (1)	35 W
Continuous Program Power (2)	70 W
Sensitivity @ 1W/1m (3)	87.5 dB
Voice Coil Diameter	20 mm / 0.8 in
Voice Coil Winding Depth	5 mm
Magnetic Gap Depth	4 mm
Flux Density	1.10 T
Magnet Weight	154 g
Net Weight	0.4 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet	Ferrite
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Epotex
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Solid Paper
MOUNTING INFORMATION
Overall Diameter	100 mm
Baffle Cutout Diameter	90 mm
Mounting Holes	4 holes Ø5 on Ø116 mm
Total Depth	50 mm
THIELE/SMALL PARAMETERS
Re	3.0 Ω
Qms	4.20
Qts	0.92
Cms	416 µm/N
Vas	1.2 l
X max	+/- 1.3 mm
N	0.26 %
Fs	140 Hz
Qes	1.18
Mms	3.1 g
Bxl	2,65 Tm
Sd	44.2 cm²
X var	+/- 3.0 mm
Le	0.14 mH

Daten

Impedanz, Z

Durchmesser des Fahrgestells

4-4.5”

Artikel-Nr.

SIC-Z001300C

Gewicht

400 g/db

Letöltések

Z001300.pdf
