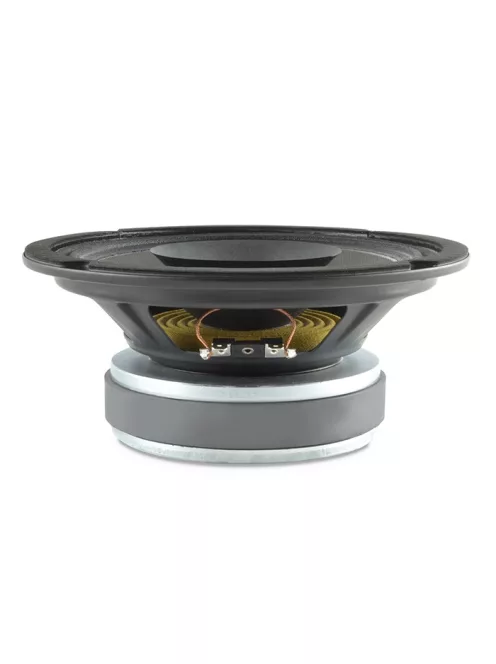

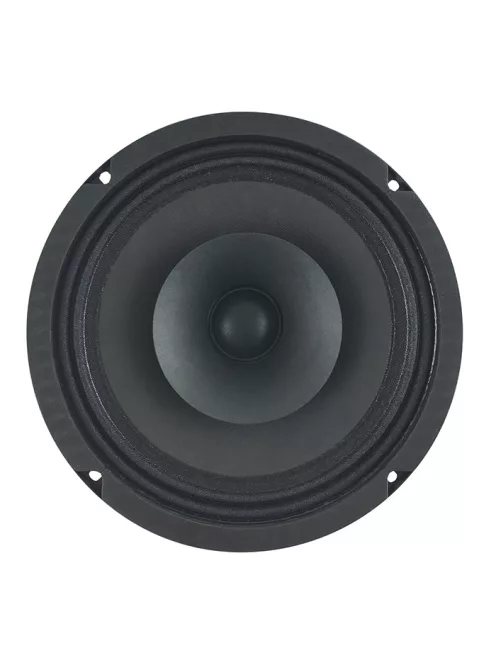

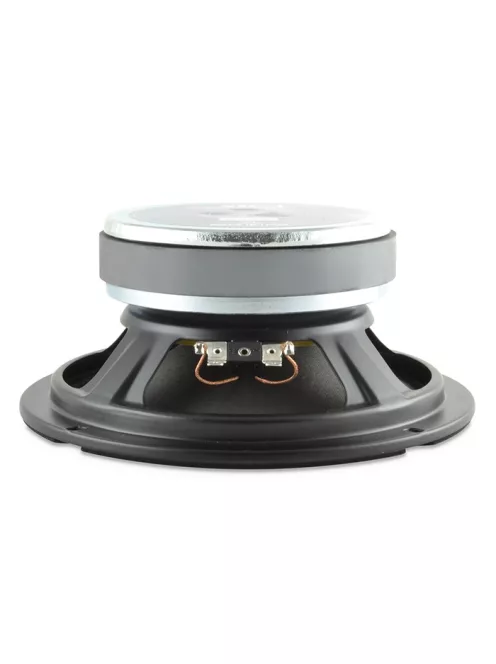

SICA 8 D 1,5 CS Szélessávú

Name: SICA 8 D 1,5 CS Szélessávú
Brand: Sica
SKU: SIC-Z004950C
Price: 102.06 EUR
Availability: InStock

Hersteller

Sica

Mehr Details

Auf Lager

102,06 €

Beschreibung

HIGHLIGHTS
Dual Cone
Nominal overall diameter	8"
Nominal voice coil diameter	38 mm
Magnet material	Ferrite
Basket material	Pressed Sheet Steel
Power	260 W
Sensitivity	95.3 dB

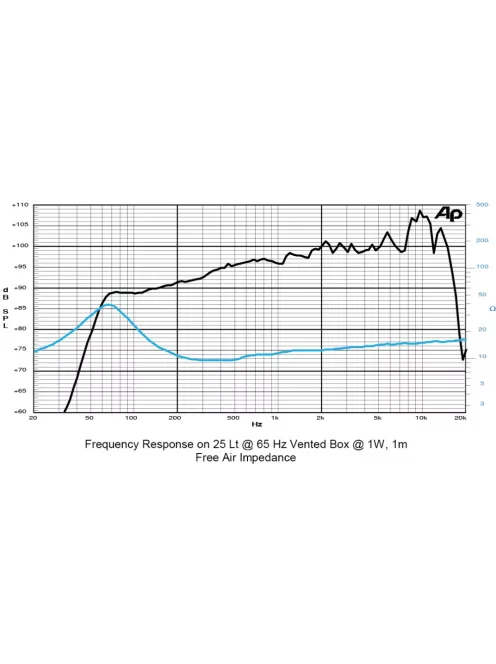

Frequency range	65-15000 Hz
GENERAL SPECIFICATIONS
Nominal Diameter	8 in / 210 mm
Nominal Impedence	8 Ω
Rated Power AES (1)	130 W
Continuous Program Power (2)	260 W
Sensitivity @ 1W/1m (3)	95.3 dB
Voice Coil Diameter	38 mm / 1.5 in
Voice Coil Winding Depth	10 mm
Magnetic Gap Depth	8 mm
Flux Density	1.10 T
Magnet Weight	1100 g
Net Weight	3.1 kg
CONSTRUCTIVE CHARACTERISTICS
Magnet	Ferrite
Basket Material	Pressed Sheet Steel
Voice Coil Winding Material	Copper
Voice Coil Former Material	Kapton
Cone Material	Paper
Cone Treatment	No
Surround Material	Treated Cloth
Dust Dome Material	Treated Cloth
MOUNTING INFORMATION
Overall Diameter	210 mm
Baffle Cutout Diameter	184 mm
Mounting Holes	4 holes 5x8 mm on Ø197 mm
Total Depth	88.6 mm
THIELE/SMALL PARAMETERS
Re	6.6 Ω
Qms	2.21
Qts	0.30
Cms	392 µm/N
Vas	25.5 l
X max	+/- 2.5 mm
N	1.69 %
Fs	62.0 Hz
Qes	0.35
Mms	16.8 g
Bxl	11.18 Tm
Sd	213.8 cm²
X var	+/- 4.0 mm
Le	0.35 mH

Daten

Impedanz, Z

Durchmesser des Fahrgestells

8”

Artikel-Nr.

SIC-Z004950C

Gewicht

3,1 kg/db

Letöltések

Z004950.pdf
