AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp

Design your own powered subwoofer, powered speaker or audio amplifier with Sure's 2 x 500 watt stereo amp board. It's ready to handle mid power demanding audio projects.

Highlights

• Temperature controlled cooling fan
• Over-engineered protection circuits
• Versatile 3-ohm stability
• Perfect size for use as a subwoofer amplifier for home or vehicle
• Up to 1,000 watts max power
• Requires 24 to 50 VDC power supply

Product details

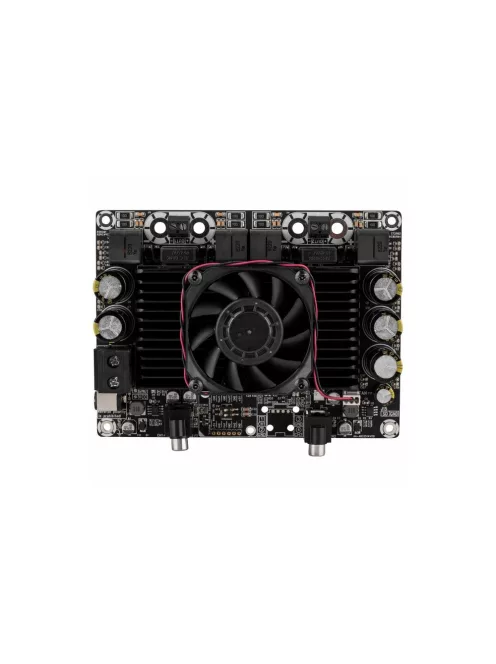

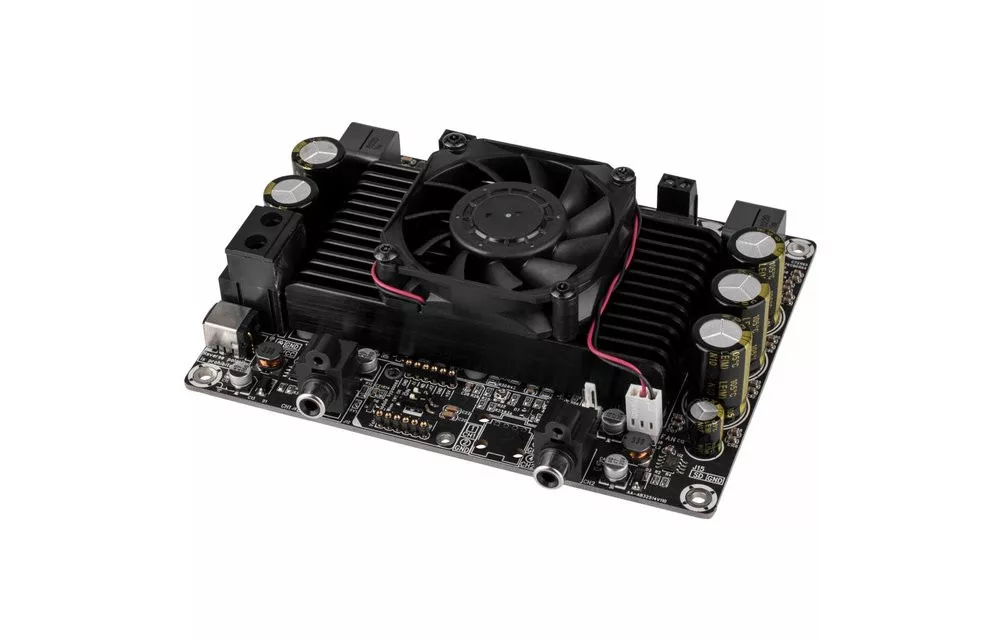

Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp

This mid power stereo amplifier board means serious business! This audio amplifier board cranks out 1,000 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for an audio amp for your home or vehicle.

Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has three fixed gain settings or you can use Sure's plug in volume control option. A 24 to 50 VDC power supply is required.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.
