Nominal impedance 8 Ω
Re 6 Ω
Sensitivity 1W / 1m 90 dB

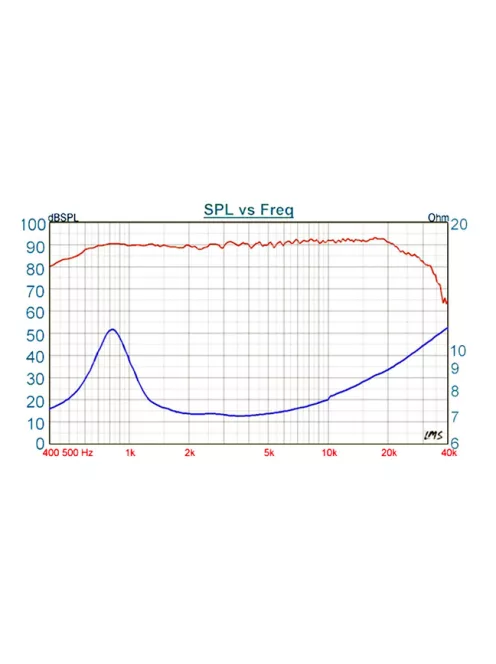

Frequency response 850-20K Hz
Free air resonance 850 Hz
Voice coil diameter 28mm
Air gap height 2 mm
Nominal power 12 W
Maximum input power 100 W
Neodymium magnet
Levc 0.012 mH
Zo 12 Ω
Xmax 0.26 mm
