W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker

Name: W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker
Brand: TangBand
SKU: TAN-W5-1138SMF
Price: 22492 HUF
Availability: InStock

TangBand

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

TangBand

További adatok

Nincs raktáron, de rendelhető

22 492 Ft

Részletek

Woofer TypeSubwoofer

Nominal Diameter: 5-1/4"

Power Handling (RMS): 40 Watts

Power Handling (max): 80 Watts

Impedance (Z): 4 ohms

Sensitivity: 82 dB 1W/1m

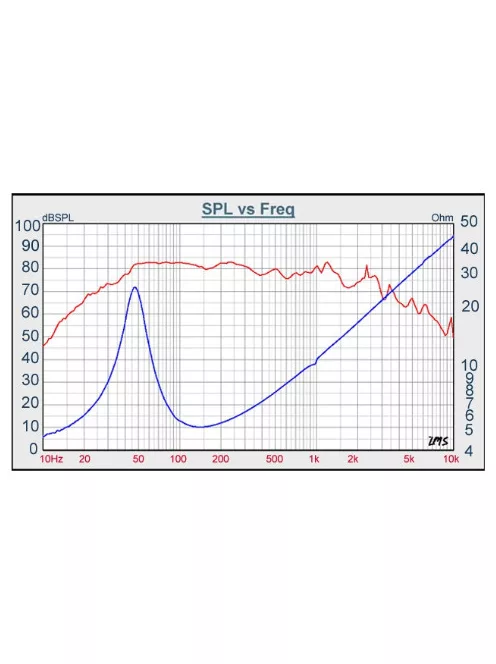

Frequency Response: 45 to 1,500 Hz

Voice Coil Diameter: 1.25"

DC Resistance (Re): 3.4 ohms

Voice Coil Inductance (Le): 0.34 mH

Resonant Frequency (Fs): 45 Hz

Mechanical Q (Qms): 3.56

Electromagnetic Q (Qes): 0.57

Total Q (Qts): 0.49

Diaphragm Mass Inc. Airload (Mms): 28.81g

Mechanical Compliance of Suspension (Cms): 0.37 mm/N

Surface Area of Cone (Sd): 94 cm²

BL Product (BL): 7.17 Tm

Compliance Equivalent Volume (Vas): 0.17 ft.³

Maximum Linear Excursion (Xmax): 9.25 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

Overall Outside Diameter: 6.14"

Overall Depth: 3.67"

Baffle Cutout Diameter: 4.74"

# Mounting Holes: 4
