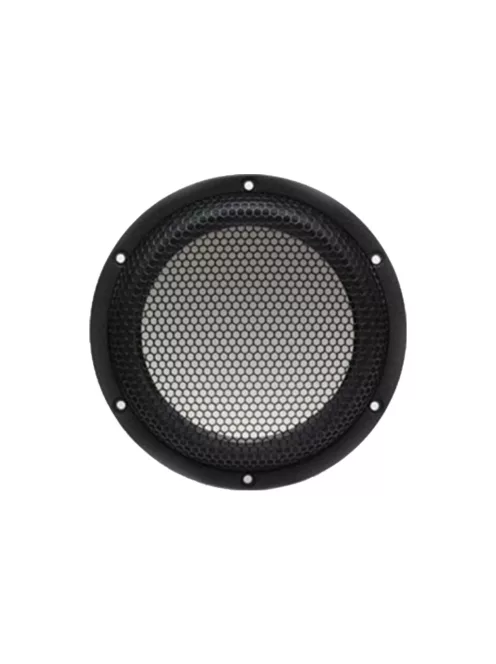

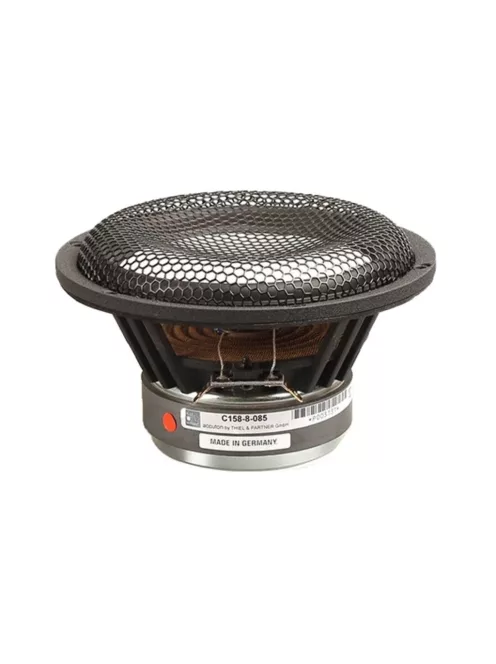

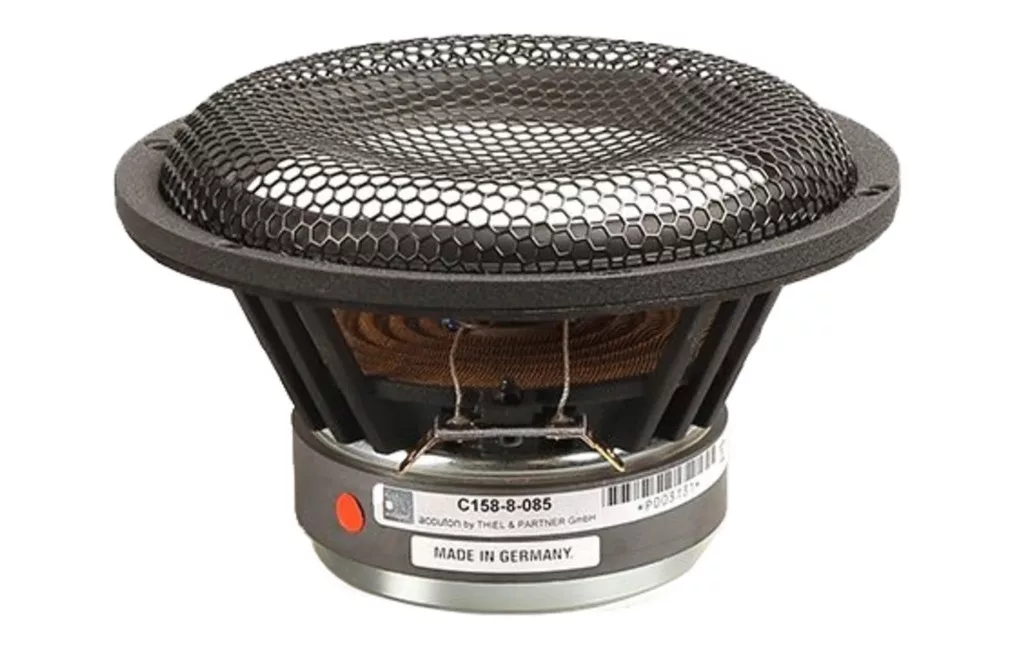

C158-8-085 Ceramic 6.25'' Bass-midwoofer

Highlights

overhung motor design
25 mm Titanium VC Former
Soft Rubber Surround
Vented VC, Pole Piece & Spider
38 HZ - 3 KHZ in vented Box

Product details

C158-8-085 Ceramic 6.25'' Bass-midwoofer

6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders. Small and light voice coil with 25mm titanium. Voice coil former for high midrange resolution. Long excursion design for high SPL capabilities.
Specifications
Article numberC158-8-085
EAN8785256847389
Woofer TypeBass-midwoofer
Nominal Diameter6.25"
Power Handling (RMS)100 Watts
Sensitivity (SPL at 1m / 2.83V)87.5 dB
Voice Coil Diameter25 mm
DC Resistance (Re)8.1 OHM
Voice Coil Inductance (Le)0.54mH
Resonant Frequency (Fs)37 Hz
Mechanical Q (Qms)4.91
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.36
Diaphragm Mass Inc. Airload (Mms)12.1 grams
Mechanical Compliance of Suspension (Cms)1.5 MM/N
Surface Area of Cone (Sd)113 Cm2
BL Product (BL)7.7 N/A
Compliance Equivalent Volume (Vas)27.3 L
Maximum Linear Excursion (Xmax)5 mm
Driver's Mechanical Losses (Rms)0.58 Kg's
Voice Coil FormerTI
Overall Outside Diameter158 MM
Overall Depth82 MM
Baffle Cutout Diameter137 MM
