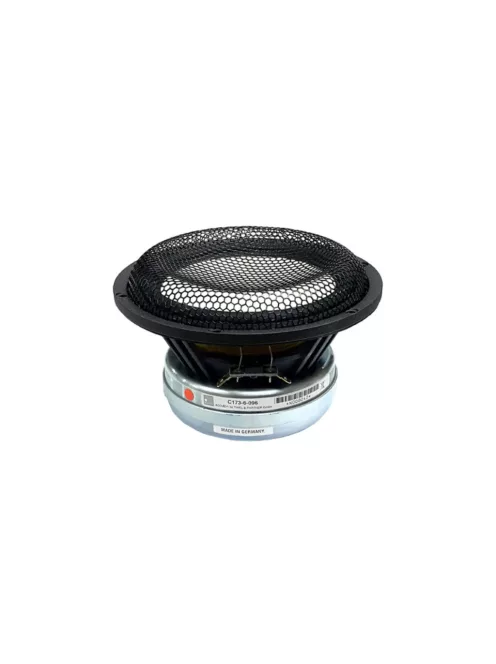

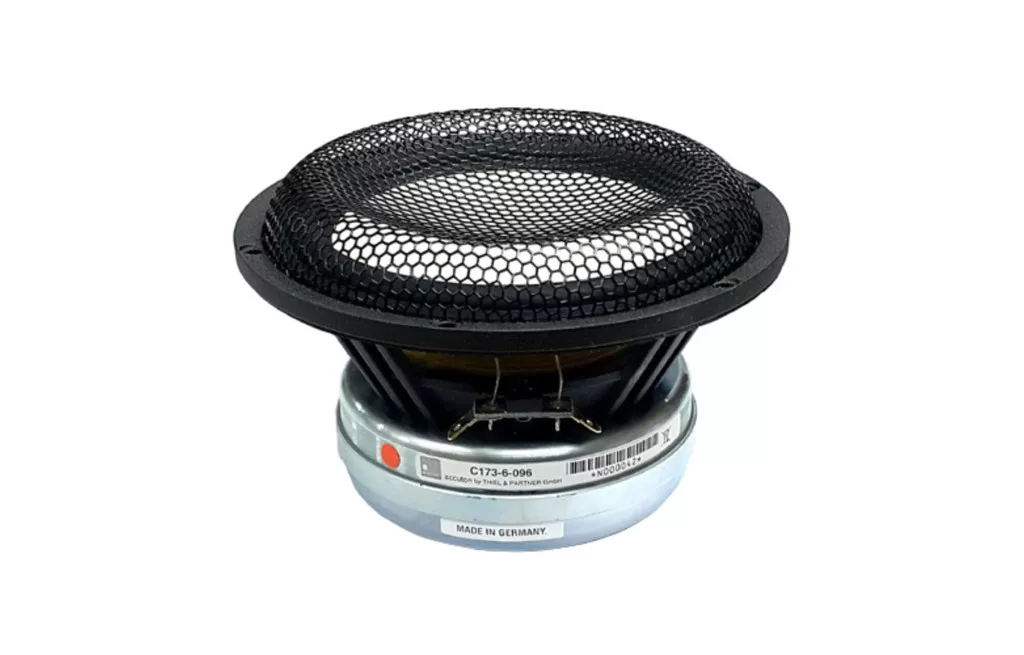

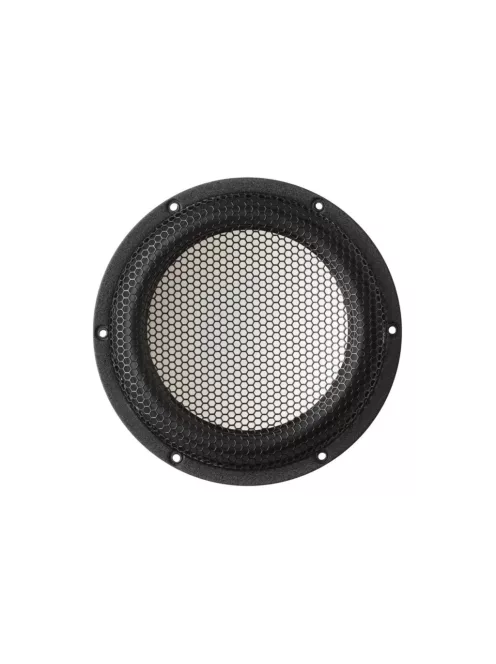

C173-6-096 7'' Bass-midwoofer

The Accuton C173-6-096 is a 7 inch high efficiency bass-midrange driver for 3-way designs. It features a large voice coil with a 55mm titanium voice coil former for high resolution in the midrange. Its large, 120mm neodymium magnet system provides very low distortion.

Highlights

Underhung motor design
55 mm Titanium VC Former
Soft Rubber Surround
Vented VC, Pole Piece & Spider
40 HZ - 3 KHZ in vented Box

Product details

Accuton C173-6-096 7'' Bass-midwoofer

This 7 inch bass-midrange with high efficiency for 3 way designs. Large sized voice coil with 55mm titanium voice coil former for high midrange resolution. Big, underhung 120mm Neodymium magnet system for very low distortion.

The driver has an ultra-hard ceramic dome. Additionally, it has a power handling of 120 W, linear excursion of +/-5 mm, voice coil diameter of 55 mm, voice coil former material of titanium, voice coil material of copper, voice coil inductance of 0.31 mH, force factor of 11.35 N/A and motor type of underhung.

Specifications

Woofer Type
Bass-midwoofer
Nominal Diameter
7"
Power Handling (RMS)
120W
Sensitivity (SPL at 1m / 2.83V)
93 dB
DC Resistance (Re)
6.77 Ohm
Resonant Frequency (Fs)
50 Hz
Mechanical Q (Qms)
4.68
Electromagnetic Q (Qes)
0.24
Total Q (Qts)
0.22
Diaphragm Mass Inc. Airload (Mms)
14.4 g
Mechanical Compliance of Suspension (Cms)
0.7 mm/n
Surface Area of Cone (Sd)
130 Cm2
Compliance Equivalent Volume (Vas)
16.99 ltr
Maximum Linear Excursion (Xmax)
5 mm
Driver's Mechanical Losses (Rms)
0.96 Kg's
Cone / Diaphragm Material
Ceramic
Overall Outside Diameter
173 MM
Overall Depth
102 MM
Baffle Cutout Diameter
146 MM
