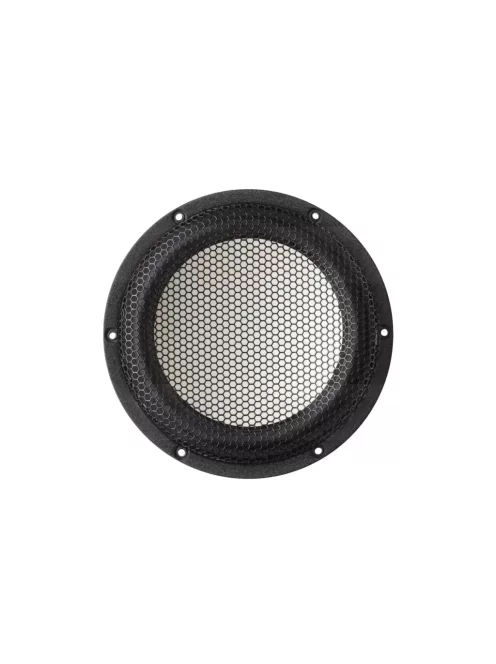

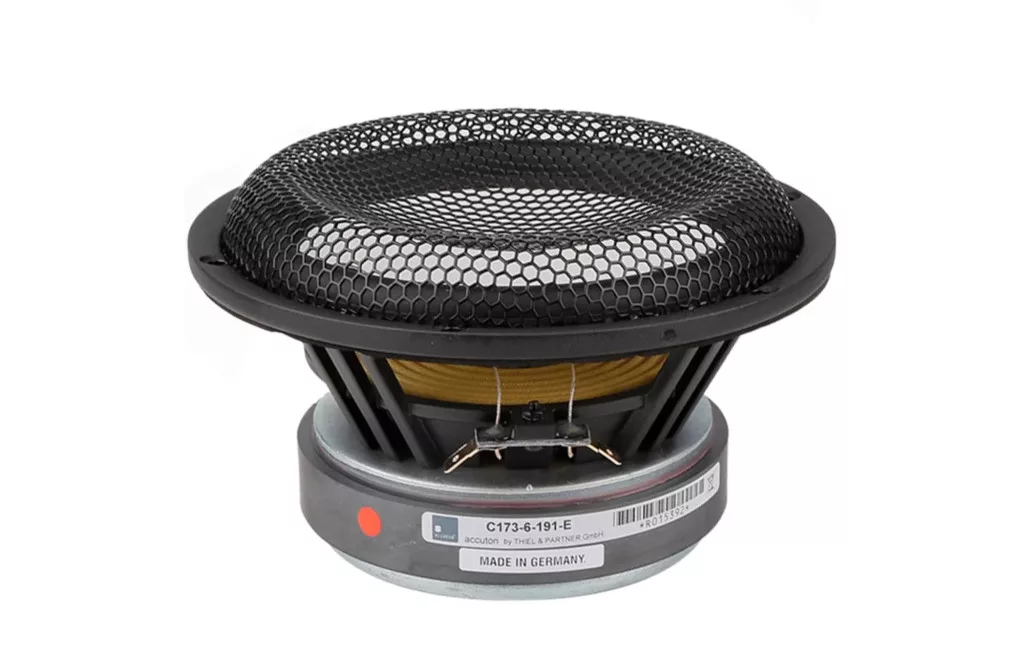

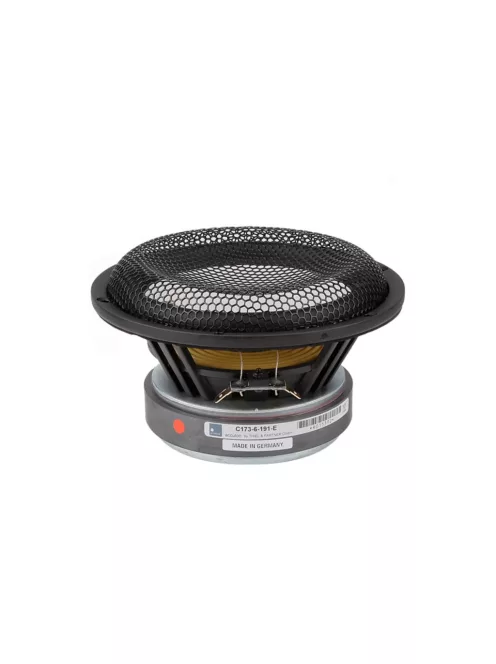

C173-6-191 7'' Bass-midwoofer

The Accuton C173-6-191 is a 7-inch bass-midrange driver designed for small bookshelf monitors or slim floorstanders.

Highlights

overhung motor design
38 mm Titanium VC Former
High Shape Rubber Surround
Vented VC, Pole Piece & Spider
35 HZ - 2.8 KHZ in closed Box

Product details

Accuton C173-6-191 7'' Bass-midwoofer

The Accuton C173-6-191 features a medium-sized voice coil with a 38mm titanium voice coil former for high midrange resolution and a long excursion design for high SPL capabilities. The ceramic dome provides high damping of the 4 kHz dome resonance.

The C173-6-191 is the successor to the C173-6-095 and has higher excursion capabilities and smaller box size. This high-end 7" ceramic dome bass-midrange driver has a frequency range of 35Hz - 2500Hz, 88dB / 2.83V / 1M, 6Ω, Fs: 33Hz, Qts: 0.32.

Specifications
Article numberC173-6-191
EAN8785256847426
Power Handling (RMS)120 W
Impedance (Z)6 Ohm
Sensitivity (SPL at 1m / 2.83V)88 dB
Voice Coil Diameter38 mm
DC Resistance (Re)5.9 Ohm
Voice Coil Inductance (Le)0.72 mH
Resonant Frequency (Fs)38.6 Hz
Mechanical Q (Qms)5.27
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.34
Diaphragm Mass Inc. Airload (Mms)19.8 g
Mechanical Compliance of Suspension (Cms)0.86 mm/n
Surface Area of Cone (Sd)133 Cm2
BL Product (BL)8.8 N/A
Compliance Equivalent Volume (Vas)21.6 ltr
Maximum Linear Excursion (Xmax)5 mm
Driver's Mechanical Losses (Rms)0.91 Kg's
Cone / Diaphragm MaterialCeramic
Overall Outside Diameter173 MM
Overall Depth94.5 MM
Baffle Cutout Diameter146 MM
