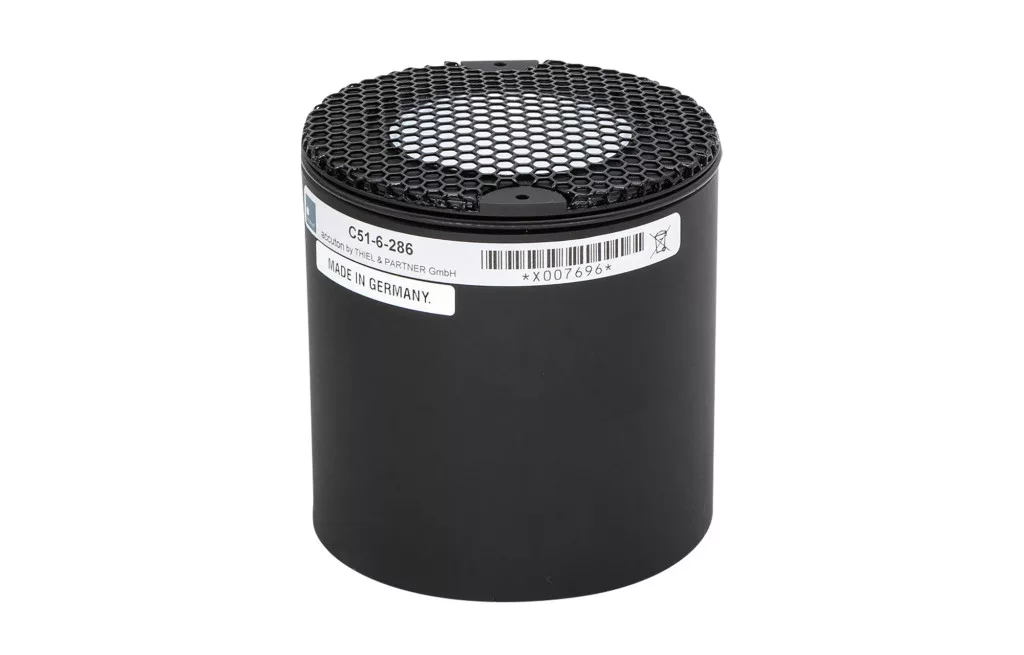

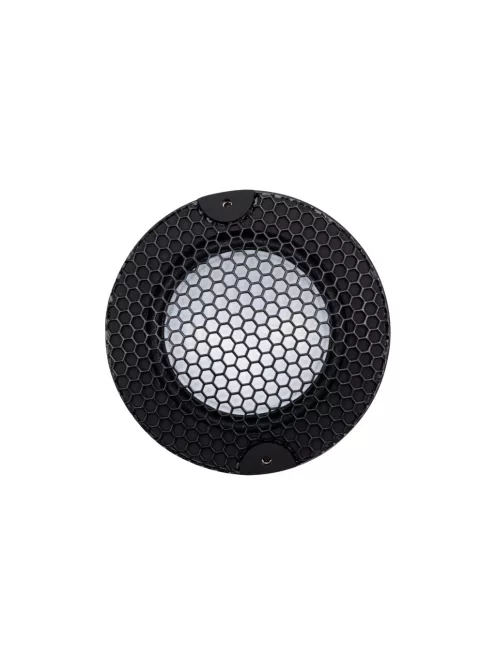

C51-6-286 2'' Ceramic Cell Tweeter

The C51-6-286 is a 2 inch tweeter with ultra hard ceramic dome in a 86 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.

Highlights

full featured cell concept
underhung motor design
vented vc & pole piece
no ferrofluid filling
800 HZ - 10000 HZ

Product details

Accuton C51-6-286 2'' Ceramic Cell Tweeter

A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend the C51-6-286 in an application above 800 Hz.

The ultra-hard ceramic dome is made of a material that is extremely stiff and light, which makes it ideal for high-frequency reproduction. The ceramic material used in the dome is also highly resistant to temperature changes and humidity, which makes it ideal for use in high-end audio systems

Specifications

Tweeter Series
Ceramic Cell Tweeter
Power Handling (RMS)
120 Watt
Impedance (Z)
8 Ohm
Sensitivity (SPL at 1m / 2.83V)
93 dB
Frequency Response
800 - 10.000 Hz
Resonant Frequency (Fs)
581 Hz
DC Resistance (Re)
5.6 Ohm
Mechanical Q (Qms)
4.86
Electromagnetic Q (Qes)
1.61
Total Q (Qts)
1.21
Overall Outside Diameter
85.6 mm
Cutout Diameter
86 mm
Depth
87 mm
