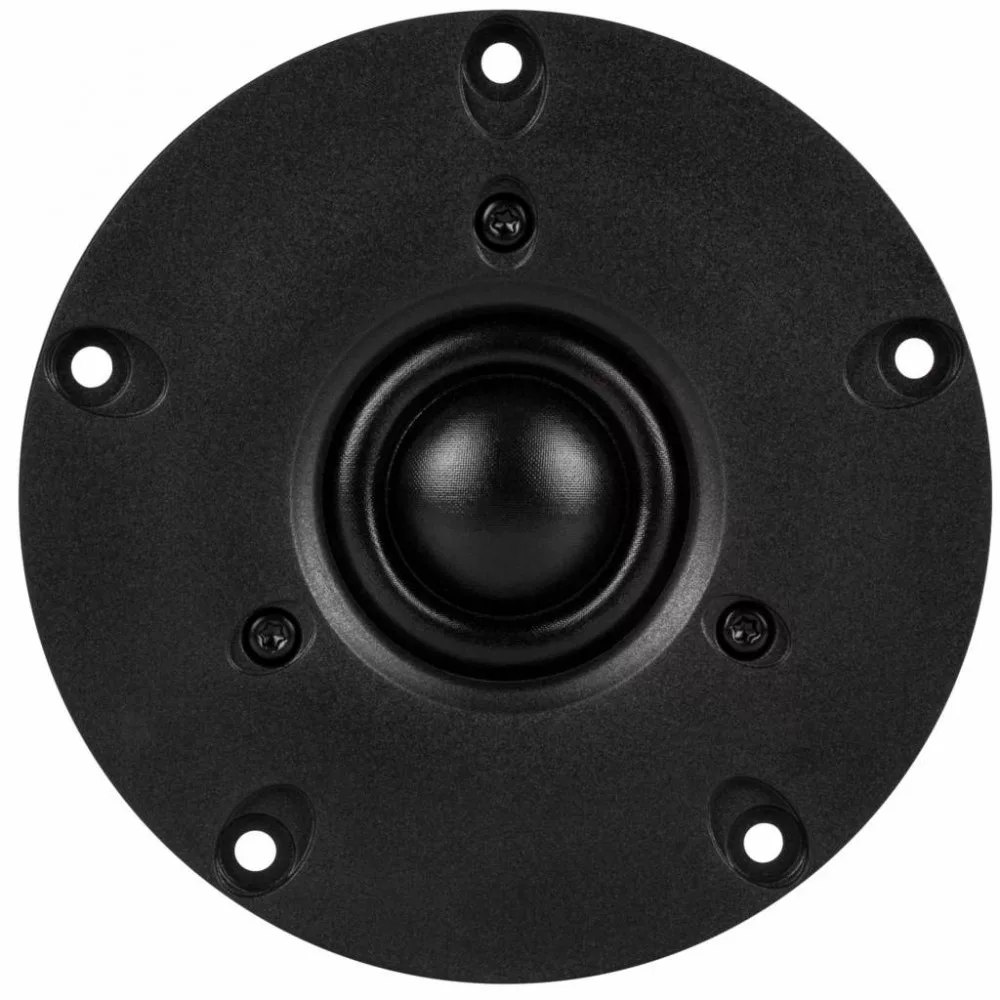

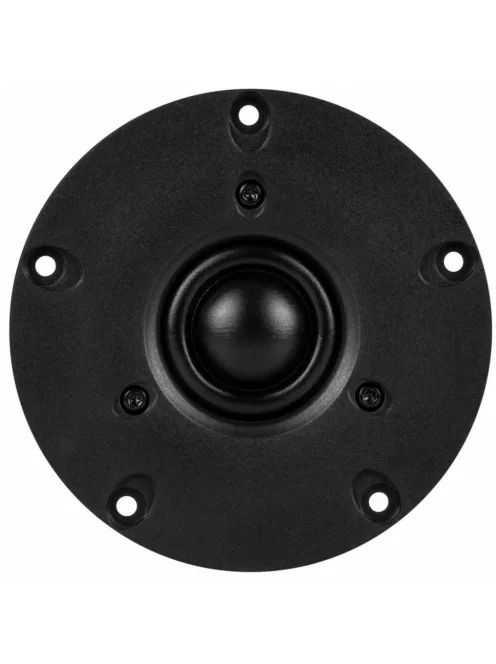

Tweeter Type: Soft Dome
Tweeter Series: DX Series
Cone / Dome Diameter: 1"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 ohms
Sensitivity: 89.8 dB 1W/1m
Frequency Response: 2500 to 20,000 Hz
Resonant Frequency (Fs): 640 Hz
DC Resistance (Re): 2.93 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 2.46
Electromagnetic Q (Qes): 0.74
Total Q (Qts): 0.57
