Woofer Type: Full Range Woofer
Nominal Diameter: 2-1/2"
Power Handling (RMS): 30 Watts
Power Handling (max): 60 Watts
Impedance (Z): 4 ohms
Sensitivity: 86.5 dB 2.83V/1m

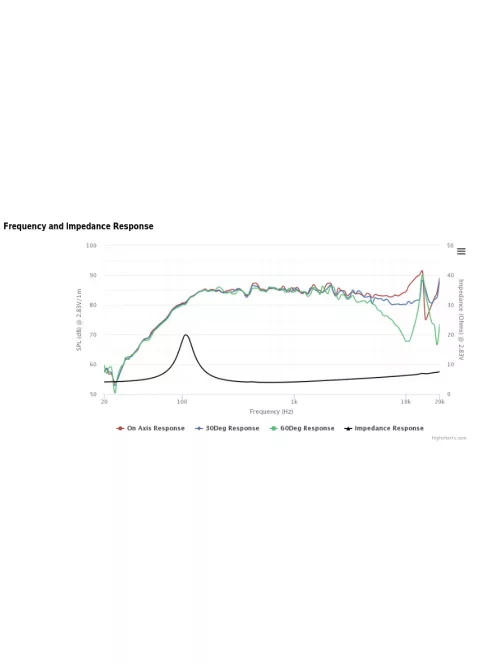

Frequency Response: 90 to 20,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 3.7 ohms
Voice Coil Inductance (Le): 0.03 mH
Resonant Frequency (Fs): 101.2 Hz
Mechanical Q (Qms): 4.08
Electromagnetic Q (Qes): 0.75
Total Q (Qts): 0.63
Diaphragm Mass Inc. Airload (Mms): 1.9g
Mechanical Compliance of Suspension (Cms): 1.27 mm/N
Surface Area of Cone (Sd): 22 cm²
BL Product (BL): 2.7 Tm
Compliance Equivalent Volume (Vas): 0.02 ft.³
Maximum Linear Excursion (Xmax): 2 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

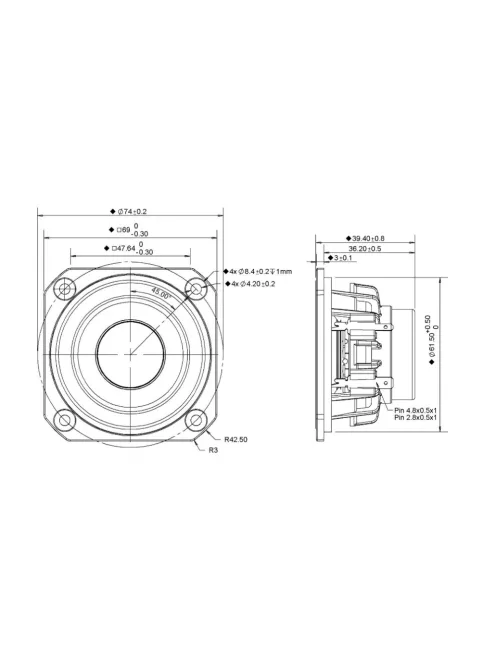

Overall Outside Diameter: 2.75"
Overall Depth: 2.15"
Baffle Cutout Diameter: 2.42"
# Mounting Holes: 4
