Woofer Type: Full Range
Nominal Diameter: 3"
Power Handling (RMS): 25 Watts
Power Handling (max): 50 Watts
Impedance (Z): 8 ohms
Sensitivity: 82.6 dB 2.83V/1m

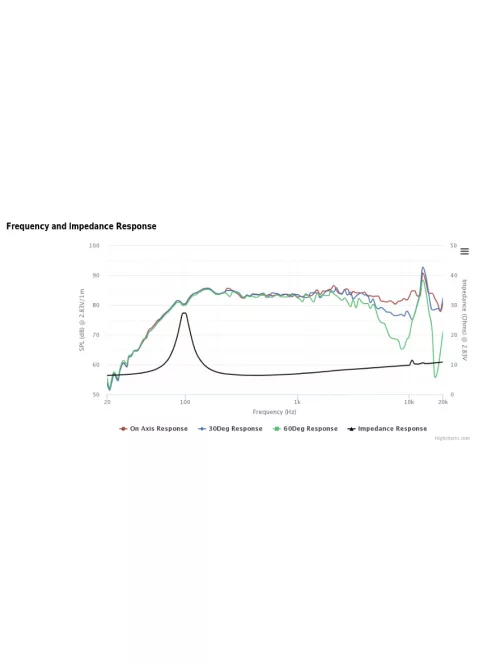

Frequency Response: 100 to 15,000Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.05 mH
Resonant Frequency (Fs): 103 Hz
Mechanical Q (Qms): 6.1
Electromagnetic Q (Qes): 1.11
Total Q (Qts): 0.94
Diaphragm Mass Inc. Airload (Mms): 2.52g
Mechanical Compliance of Suspension (Cms): 1 mm/N
Surface Area of Cone (Sd): 27.3 cm²
BL Product (BL): 2.98 Tm
Compliance Equivalent Volume (Vas): 0.04 ft.³
Maximum Linear Excursion (Xmax): 2.05 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium

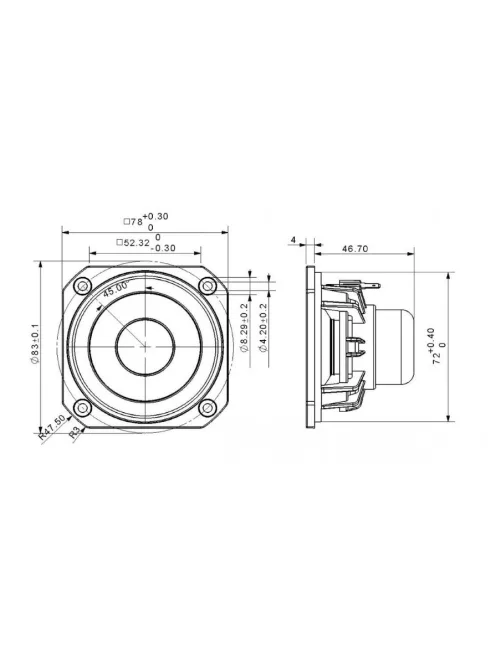

Overall Outside Diameter: 3.07"
Overall Depth: 2"
Baffle Cutout Diameter: 2.84"
# Mounting Holes: 4
