Woofer Type: Subwoofer
Nominal Diameter: 8”
Power Handling (RMS): 30 Watts
Power Handling (max): 60 Watts
Impedance (Z): 8 Ohms
Sensitivity: 84.8 dB 2.83V/1m

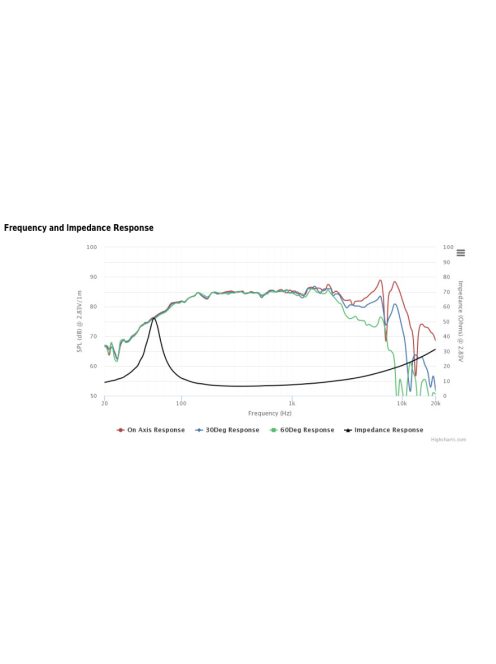

Frequency Response: 63 to 6,200Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 5.6 ohms
Voice Coil Inductance (Le): 0.24 mH
Resonant Frequency (Fs): 63 Hz
Mechanical Q (Qms): 4.66
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.44
Diaphragm Mass Inc. Airload (Mms): 6.9g
Mechanical Compliance of Suspension (Cms): 0.923 mm/N
Surface Area of Cone (Sd): 50.3 cm²
BL Product (BL): 5.58 Tm
Compliance Equivalent Volume (Vas): 0.11 ft.³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Treated Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite

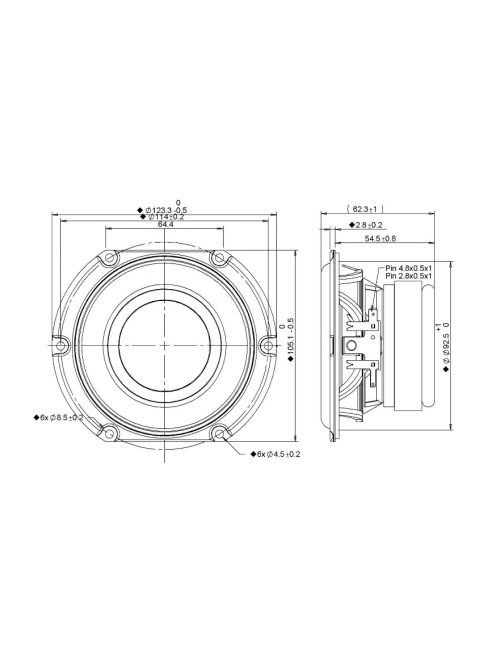

Overall Outside Diameter: 4.85"
Overall Depth: 3.64"
Baffle Cutout Diameter: 3.75"
# Mounting Holes: 6
