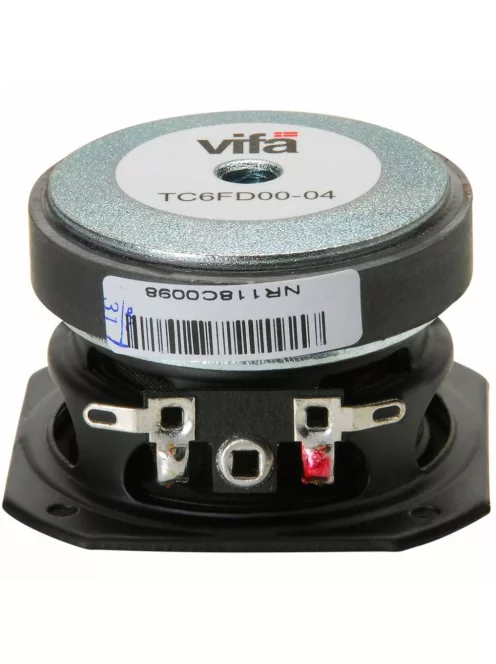

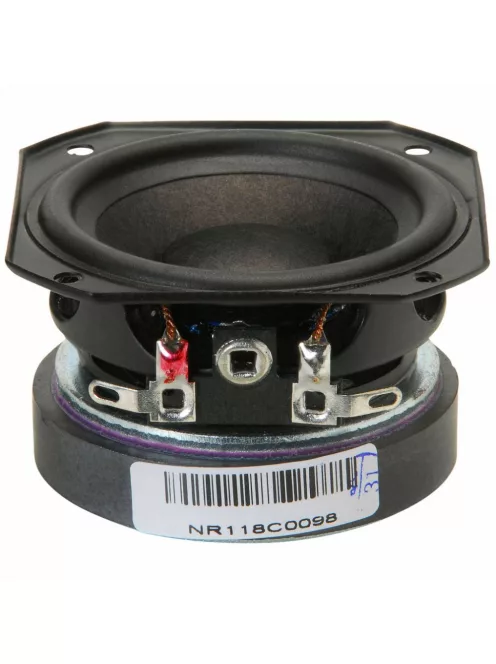

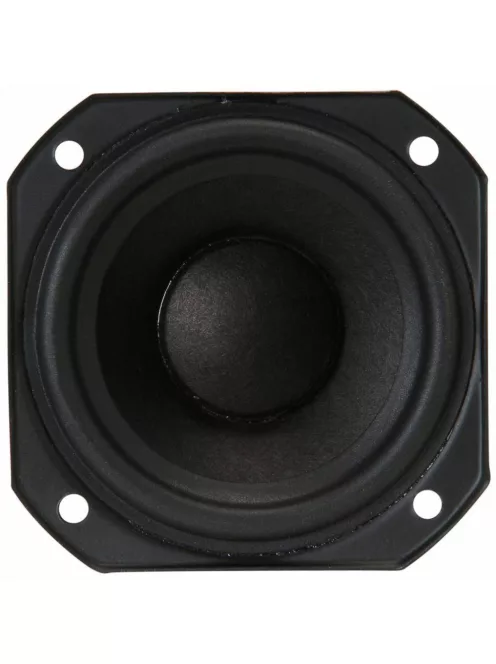

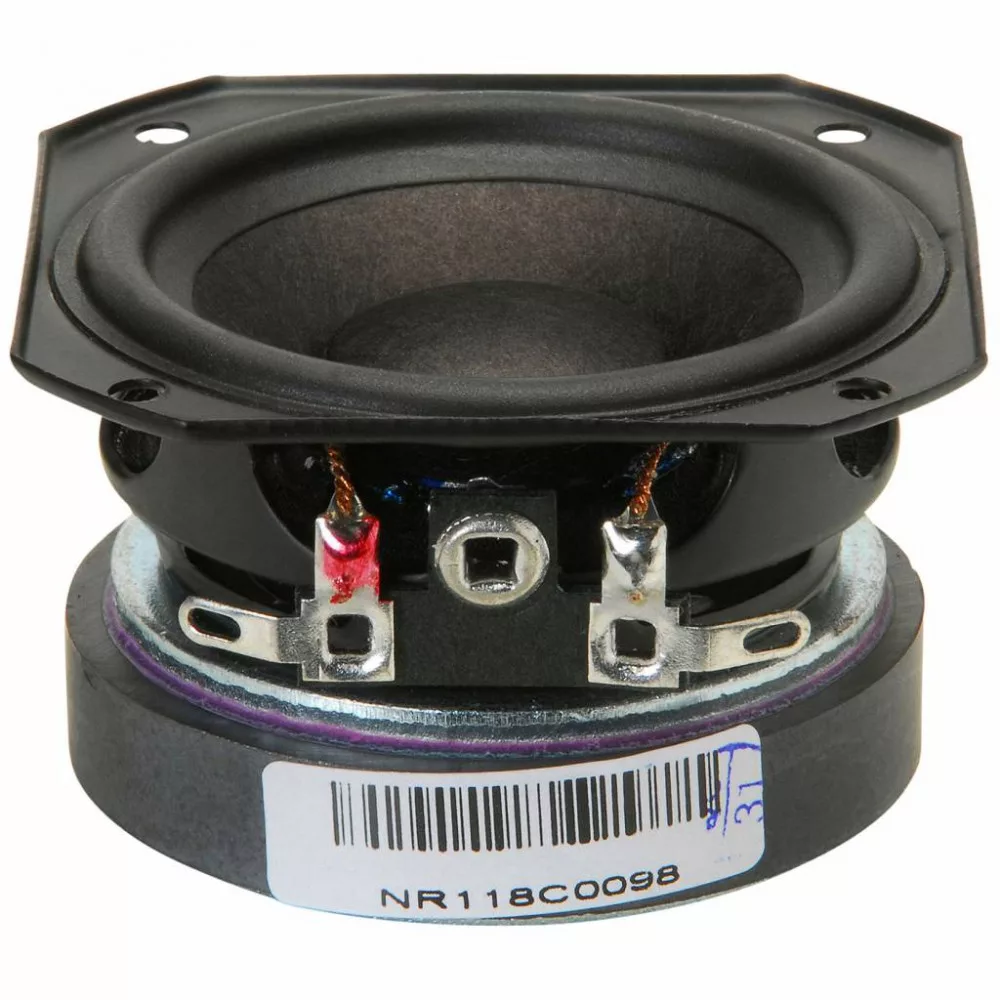

TC6FD00-04 2" Full Range Paper Cone Woofer

7 553 Ft

TC6FD00-04 2" Full Range Paper Cone Woofer

Name: TC6FD00-04 2" Full Range Paper Cone Woofer
Brand: PeerlessbyTymphany
SKU: PEE-TC6FD00-04
Price: 7553 HUF
Availability: InStock

Peerless

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

PeerlessbyTymphany

További adatok

Nincs raktáron, de rendelhető

7 553 Ft

Részletek

Woofer Type: Full Range

Nominal Diameter: 2"

Power Handling (RMS): 15 Watts

Power Handling (max): 30 Watts

Impedance (Z): 4 ohms

Sensitivity: 81.5 dB 2.83V/1m

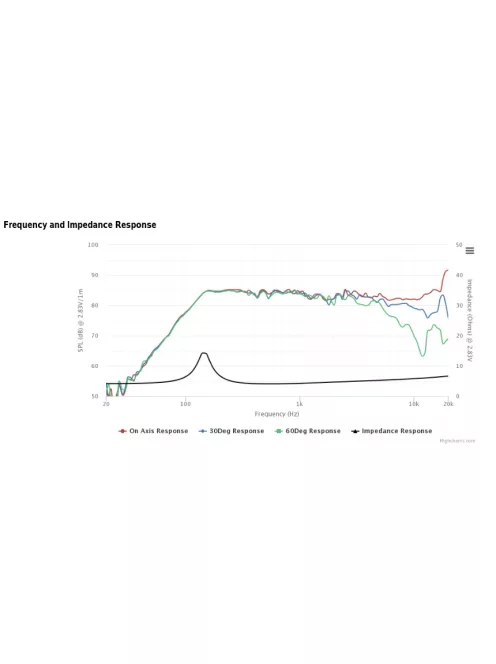

Frequency Response: 150 to 20,000Hz

Voice Coil Diameter: 0.75"

DC Resistance (Re): 3.5 ohms

Voice Coil Inductance (Le): 0.02 mH

Resonant Frequency (Fs): 175 Hz

Mechanical Q (Qms): 4.1

Electromagnetic Q (Qes): 1.29

Total Q (Qts): 0.98

Diaphragm Mass Inc. Airload (Mms): 1.22g

Mechanical Compliance of Suspension (Cms): 0.68 mm/N

Surface Area of Cone (Sd): 15.2 cm²

BL Product (BL): 1.92 Tm

Compliance Equivalent Volume (Vas): 0.008 ft.³

Maximum Linear Excursion (Xmax): 1 mm

Cone / Diaphragm Material: Paper

Surround Material: Rubber

Basket / Frame Material: Steel

Magnet Material: Ferrite

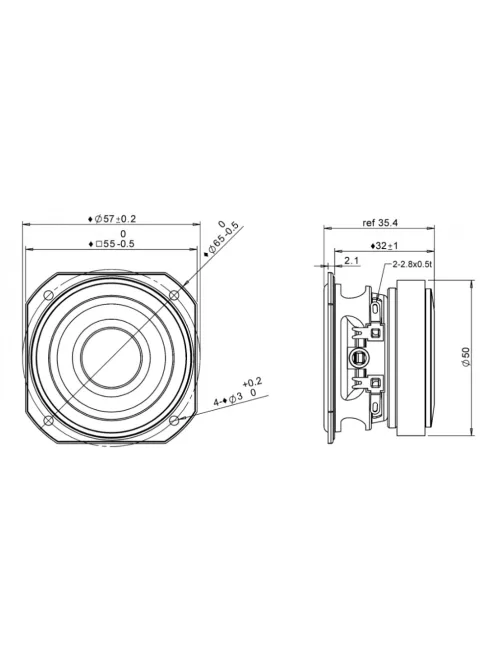

Overall Outside Diameter: 2.17"

Overall Depth: 1.37"

Baffle Cutout Diameter: 1.97"

# Mounting Holes: 4

Adatok

Cikkszám

PEE-TC6FD00-04
