W1-2121S Aluminum Full Range Neodymium Driver

Name: W1-2121S Aluminum Full Range Neodymium Driver
Brand: TangBand
SKU: TAN-W1-2121S
Price: 17282 HUF
Availability: InStock

TangBand

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

TangBand

További adatok

Rendelhető

17 282 Ft

Részletek

Woofer TypeFull-range

Nominal Diameter: 1-3/4"

Power Handling (RMS): 6 Watts

Power Handling (max): 12 Watts

Impedance (Z): 4 ohms

Sensitivity: 79 dB 1W/1m

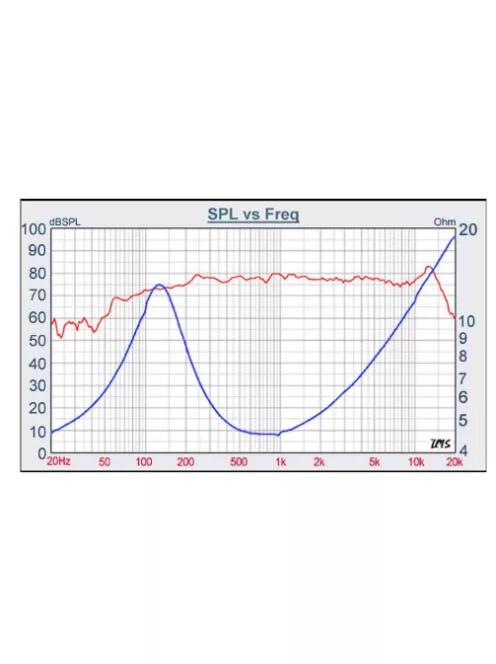

Frequency Response: 120 to 15,000 Hz

Voice Coil Diameter: 1.1"

DC Resistance (Re): 3.5 ohms

Voice Coil Inductance (Le): 0.07 mH

Resonant Frequency (Fs): 120 Hz

Mechanical Q (Qms): 1.33

Electromagnetic Q (Qes): 0.47

Diaphragm Mass Inc. Airload (Mms): 1.68g

Mechanical Compliance of Suspension (Cms): 0.949 mm/N

Surface Area of Cone (Sd): 8.935 cm²

BL Product (BL): 3.14 Tm

Compliance Equivalent Volume (Vas): 0.0038 ft.³

Maximum Linear Excursion (Xmax): 2.3 mm

Cone / Diaphragm Material: Aluminum

Surround Material: Santoprene®

Voice Coil Wire MaterialCopper

Basket / Frame Material: Polymer

Magnet Material: Neodymium

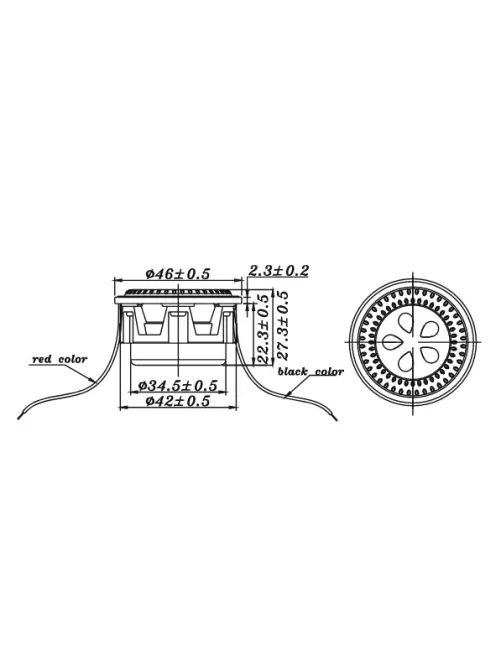

Overall Outside Diameter: 1.81"

Overall Depth: 1.07"

Baffle Cutout Diameter: 1.67"
