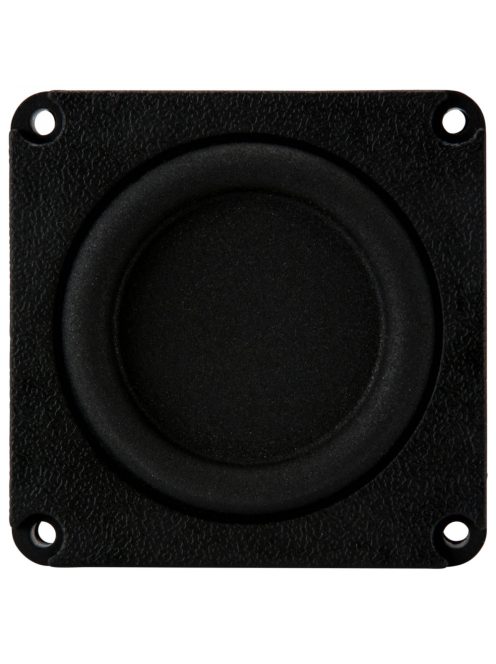

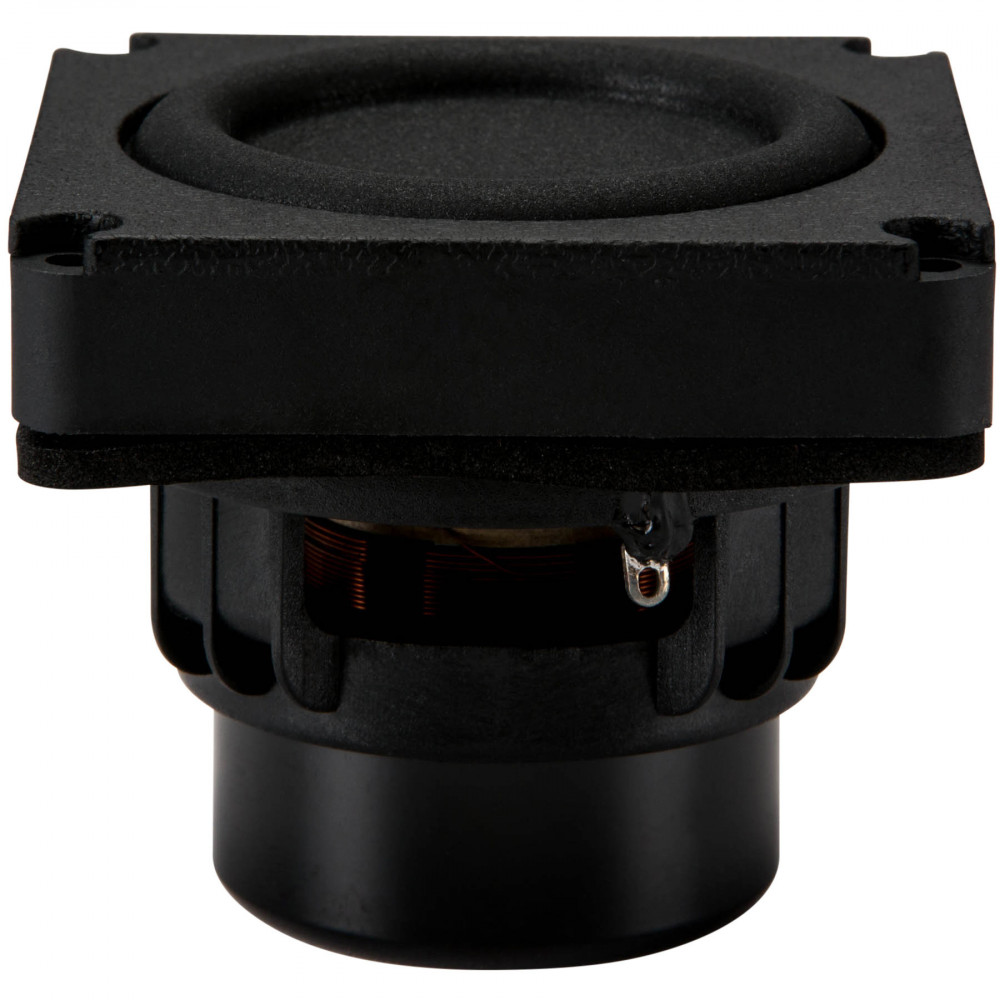

W2-2040S 2" Poly Cone RBM Micro Subwoofer

Name: W2-2040S 2" Poly Cone RBM Micro Subwoofer
Brand: TangBand
SKU: TAN-W2-2040S
Price: 25766 HUF
Availability: InStock

TangBand

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

TangBand

További adatok

Nincs raktáron, de rendelhető

25 766 Ft

Részletek

Woofer TypeRBM Subwoofer

Nominal Diameter: 2"

Power Handling (RMS): 10 Watts

Power Handling (max): 20 Watts

Impedance (Z): 4 ohms

Sensitivity: 76 dB 1W/1m

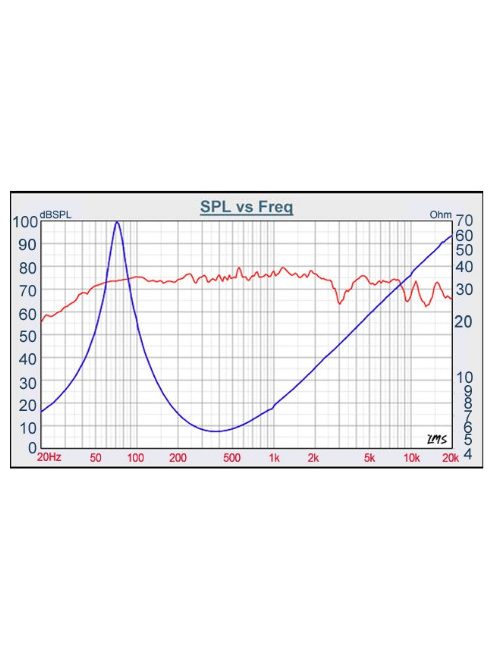

Frequency Response: 75 to 2,000 Hz

Voice Coil Diameter: 1"

DC Resistance (Re): 3.5 ohms

Voice Coil Inductance (Le): 0.25 mH

Resonant Frequency (Fs): 75Hz

Mechanical Q (Qms): 5.21

Electromagnetic Q (Qes): 0.28

Total Q (Qts): 0.26

Diaphragm Mass Inc. Airload (Mms): 6.99g

Surface Area of Cone (Sd): 14 cm²

Compliance Equivalent Volume (Vas): 0.006 ft.³

Maximum Linear Excursion (Xmax): 5.3 mm

Cone / Diaphragm Material: Poly Composite

Surround Material: Rubber

Voice Coil Wire MaterialCopper

Basket / Frame Material: Polymer

Magnet Material: Neodymium

Overall Outside Diameter: 2.43 across the flats, 3.44"

Overall Depth: 2.15"

Baffle Cutout Diameter: 2.20"

Bolt Circle Diameter3.00"

# Mounting Holes: 4
