Woofer TypeFull-range
Nominal Diameter: 2" x 3"
Power Handling (RMS): 12 Watts
Power Handling (max): 24 Watts
Impedance (Z): 4 ohms
Sensitivity: 88 dB 1W/1m

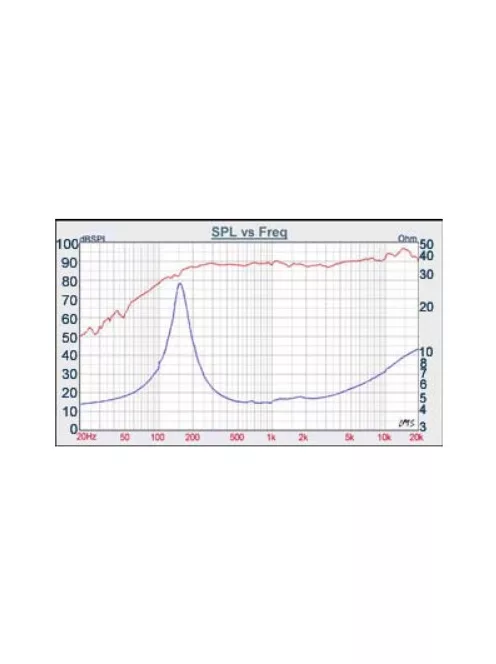

Frequency Response: 150 to 20,000 Hz
Voice Coil Diameter: 0.75"
DC Resistance (Re): 3.6 ohms
Voice Coil Inductance (Le): 0.03 mH
Resonant Frequency (Fs): 150 Hz
Mechanical Q (Qms): 4.42
Electromagnetic Q (Qes): 0.69
Total Q (Qts): 0.6
Diaphragm Mass Inc. Airload (Mms): 1.53g
Mechanical Compliance of Suspension (Cms): 0.73 mm/N
Surface Area of Cone (Sd): 29 cm²
BL Product (BL): 2.65 Tm
Compliance Equivalent Volume (Vas): 0.03 ft.³
Maximum Linear Excursion (Xmax): 0.9 mm
Cone / Diaphragm Material: Poly
Surround Material: Santoprene®
Basket / Frame Material: Polymer
Magnet Material: Neodymium
Shielded: Yes

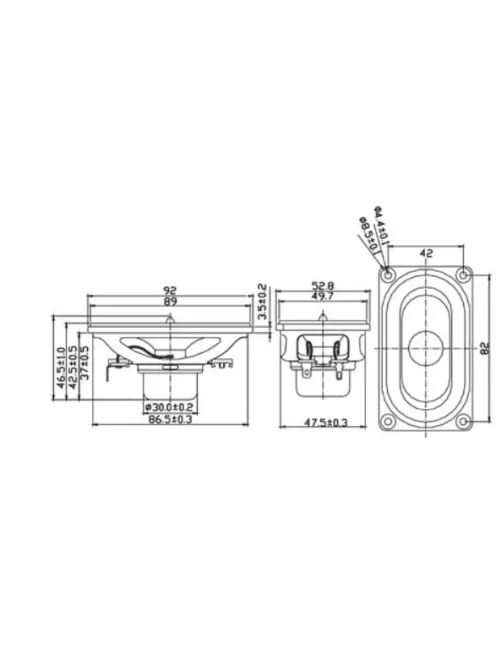

Overall Outside Diameter: 2.08" x 3.62"
Overall Depth: 1.83"
Baffle Cutout Diameter: 1.87" x 3.41"
# Mounting Holes: 4
