Woofer TypeFull-range
Nominal Diameter: 3"
Power Handling (RMS): 10 Watts
Power Handling (max): 20 Watts
Impedance (Z): 8 ohms
Sensitivity: 87 dB 1W/1m

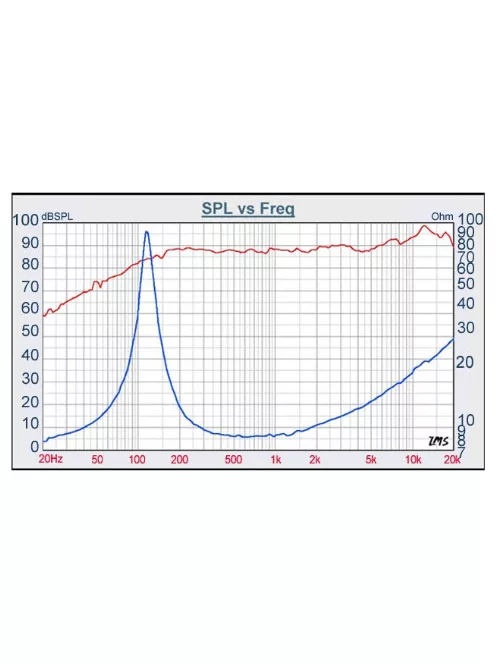

Frequency Response: 100 to 20,000 Hz
Voice Coil Diameter: 0.8"
DC Resistance (Re): 6.6 ohms
Voice Coil Inductance (Le): 0.2 mH
Resonant Frequency (Fs): 100 Hz
Mechanical Q (Qms): 5.51
Electromagnetic Q (Qes): 0.57
Total Q (Qts): 0.52
Diaphragm Mass Inc. Airload (Mms): 2g
Mechanical Compliance of Suspension (Cms): 1.15 mm/N
Surface Area of Cone (Sd): 32 cm²
BL Product (BL): 3.89 Tm
Compliance Equivalent Volume (Vas): 0.06 ft.³
Maximum Linear Excursion (Xmax): 1.25 mm
Cone / Diaphragm Material: Aluminum / Magnesium
Surround Material: Santoprene®
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 3.66"
Overall Depth: 2.13"
Baffle Cutout Diameter: 2.98"
# Mounting Holes: 4
