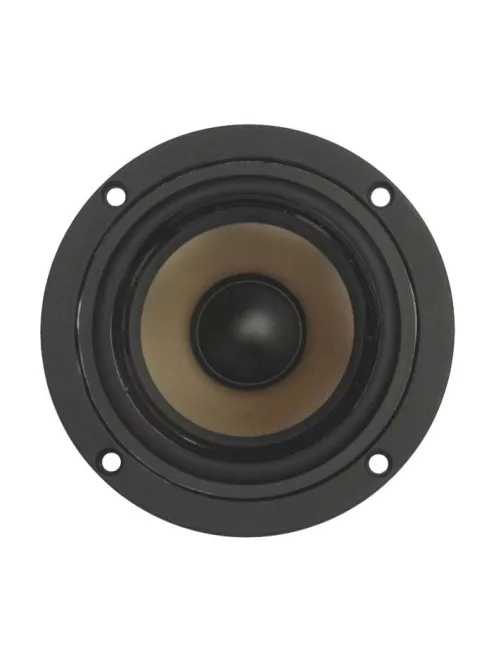

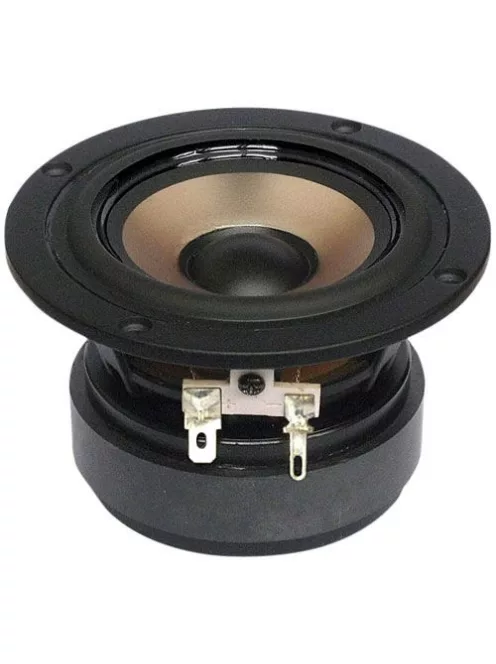

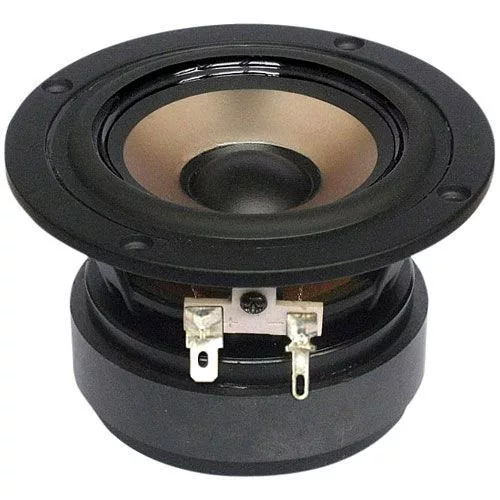

W3-881SJF 3" Full Range Speaker

17 270 Ft

W3-881SJF 3" Full Range Speaker

Name: W3-881SJF 3" Full Range Speaker
Brand: TangBand
SKU: TAN-W3-881SJF
Price: 17270 HUF
Availability: InStock

TangBand

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

TangBand

További adatok

Rendelhető

17 270 Ft

Részletek

Woofer TypeFull-range

Nominal Diameter: 3"

Power Handling (RMS): 15 Watts

Power Handling (max): 30 Watts

Impedance (Z): 8 ohms

Sensitivity: 88 dB 1W/1m

Frequency Response: 100 to 20,000 Hz

Voice Coil Diameter: 0.8"

Magnet Weight7.7 oz.

DC Resistance (Re): 6.6 ohms

Voice Coil Inductance (Le): 0.8 mH

Resonant Frequency (Fs): 100 Hz

Mechanical Q (Qms): 6.44

Electromagnetic Q (Qes): 0.41

Total Q (Qts): 0.39

Diaphragm Mass Inc. Airload (Mms): 2g

Mechanical Compliance of Suspension (Cms): 1.32 mm/N

Surface Area of Cone (Sd): 32 cm²

BL Product (BL): 4.47 Tm

Compliance Equivalent Volume (Vas): 0.07 ft.³

Maximum Linear Excursion (Xmax): 0.5 mm

Cone / Diaphragm Material: Poly

Surround Material: Santoprene®

Voice Coil Wire MaterialCCA

Voice Coil FormerKapton® / Polyimide

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite

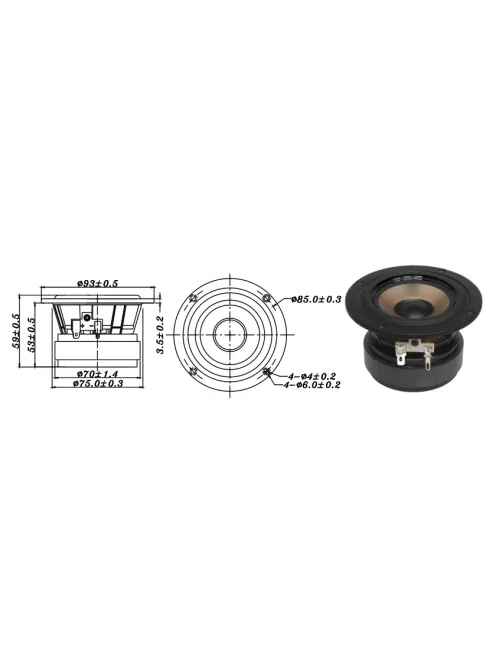

Overall Outside Diameter: 3.66"

Overall Depth: 2.32"

Baffle Cutout Diameter: 2.95"

# Mounting Holes: 4
