Woofer TypeSubwoofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 40 Watts
Power Handling (max): 80 Watts
Impedance (Z): 4 ohms
Sensitivity: 82 dB 1W/1m

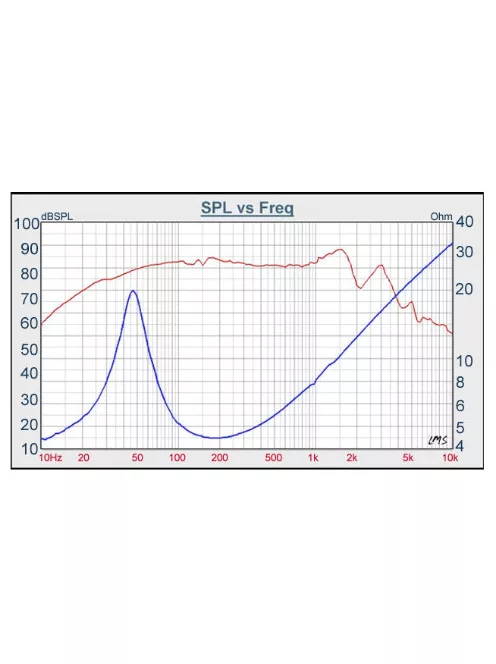

Frequency Response: 45 to 1,500 Hz
Voice Coil Diameter: 1.26"
DC Resistance (Re): 3.4 ohms
Voice Coil Inductance (Le): 1.15 mH
Resonant Frequency (Fs): 45 Hz
Mechanical Q (Qms): 2.83
Electromagnetic Q (Qes): 0.58
Total Q (Qts): 0.48
Diaphragm Mass Inc. Airload (Mms): 24.95g
Mechanical Compliance of Suspension (Cms): 0.49 mm/N
Surface Area of Cone (Sd): 94 cm²
BL Product (BL): 6.51 Tm
Compliance Equivalent Volume (Vas): 0.21 ft.³
Maximum Linear Excursion (Xmax): 9.25 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame Material: Steel
Magnet Material: Neodymium

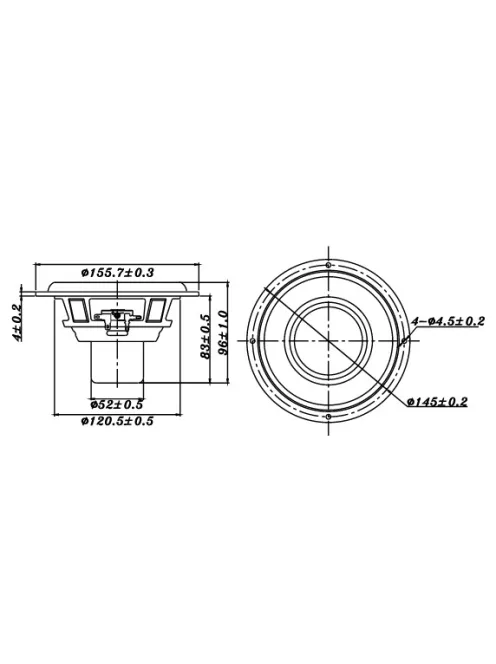

Overall Outside Diameter: 6.13"
Overall Depth: 3.78"
Baffle Cutout Diameter: 4.74"
Bolt Circle Diameter5.7"
# Mounting Holes: 4
