XXLS-P835017 12" Aluminum Cone XXLS Subwoofer

110 501 Ft

XXLS-P835017 12" Aluminum Cone XXLS Subwoofer

Name: XXLS-P835017 12" Aluminum Cone XXLS Subwoofer
Brand: PeerlessbyTymphany
SKU: PEE-XXLS-P835017
Price: 110501 HUF
Availability: InStock

Peerless

Bővebben

Beérkezés (ha a beszállítónál elérhető)

4-5 munkanap

Gyártó

PeerlessbyTymphany

További adatok

Nincs raktáron, de rendelhető

110 501 Ft

Részletek

Woofer Type: Subwoofer

Nominal Diameter: 12"

Power Handling (RMS): 175 Watts

Power Handling (max): 350 Watts

Impedance (Z): 4 Ohms

Sensitivity: 88.6 dB 2.83V/1m

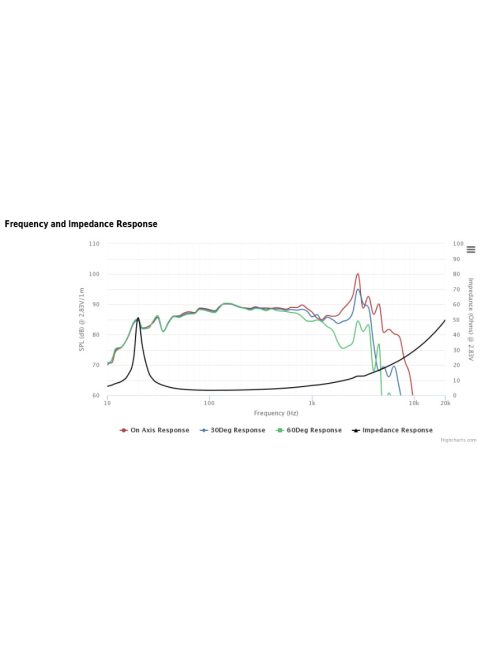

Frequency Response: 19 to 1,000Hz

Voice Coil Diameter: 2"

DC Resistance (Re): 2.5 ohms

Voice Coil Inductance (Le): 0.53 mH

Resonant Frequency (Fs): 22 Hz

Mechanical Q (Qms): 10.83

Electromagnetic Q (Qes): 0.4

Total Q (Qts): 0.39

Diaphragm Mass Inc. Airload (Mms): 131.4g

Mechanical Compliance of Suspension (Cms): 0.42 mm/N

Surface Area of Cone (Sd): 483.1 cm²

BL Product (BL): 10.58 Tm

Compliance Equivalent Volume (Vas): 4.8 ft.³

Maximum Linear Excursion (Xmax): 12.5 mm

Cone / Diaphragm Material: Aluminium

Surround Material: Rubber

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite

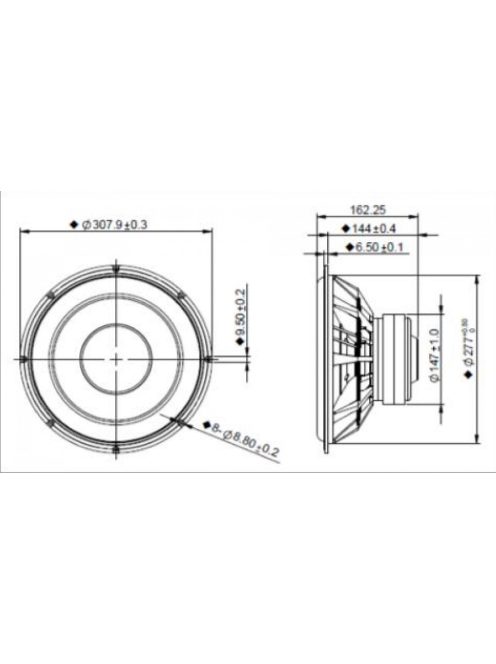

Overall Outside Diameter: 12.12"

Overall Depth: 6.38"

Baffle Cutout Diameter: 10.91"

# Mounting Holes: 6
