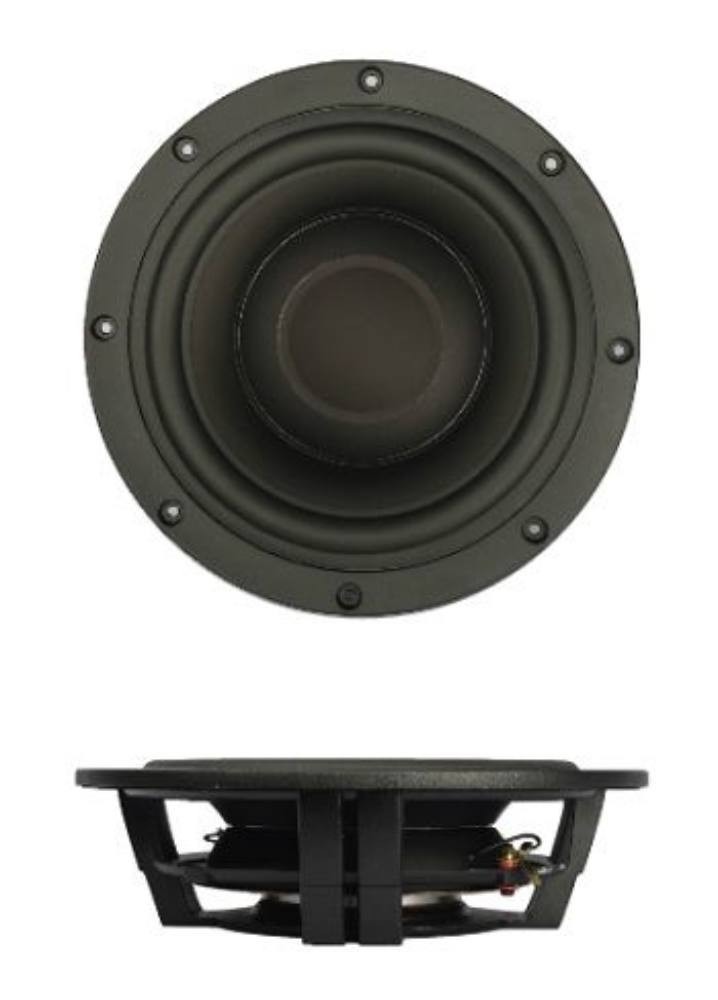

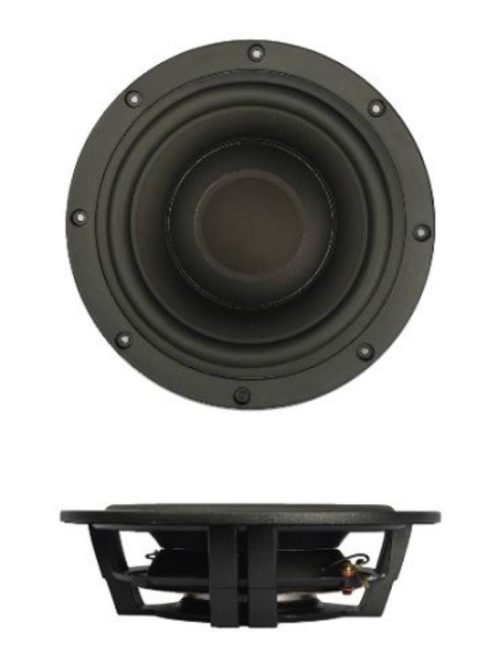

10" lapos mélysugárzó, alu membán, kettős lengőtekercs
- Unique patented long through shallow design
- Vented cast aluminum chassis for optimum strength and low compression
- Dual rigid aluminum cone structure
- Non-conducting fiber glass coil former for minimum damping
- Shorting ring in motor system for reduced distortion
- Copper voice coil for improved power handling
- Dual voice coil
- Long life insulated silver lead wires
- Powerful neodymium motor system
- Nominal Impedance 2 x 3 Ω
- DC resistance, Re 2 x 2.4 Ω
- Effective piston area, Sd 312 cm2
- Voice coil diameter 75.5 mm
- Voice coil height 30 mm
- Air gap height 6 mm
- Linear coil travel (p-p) 24 mm
- Magnetic flux density 1 T
- Magnet weight 218 g
- Net weight 3.43 kg
- Free air resonance, Fs 19.5 Hz
- Sensitivity (2.83V/1m) 88/82 dB
- Mechanical Q-factor, Qms 5.96
- Electrical Q-factor, Qes 0.29
- Total Q-factor, Qts 0.28
- Moving mass incl. air,Mms 185 g
- Force factor, Bl(par./ser.) 9.7/19.4 Tm
- Equivalent volume, Vas 49.7 ltr.
- Compliance, Cms 0.36 mm/N
- Mechanical loss, Rms 3.8 kg/s
- Rated power handling* 300 W
